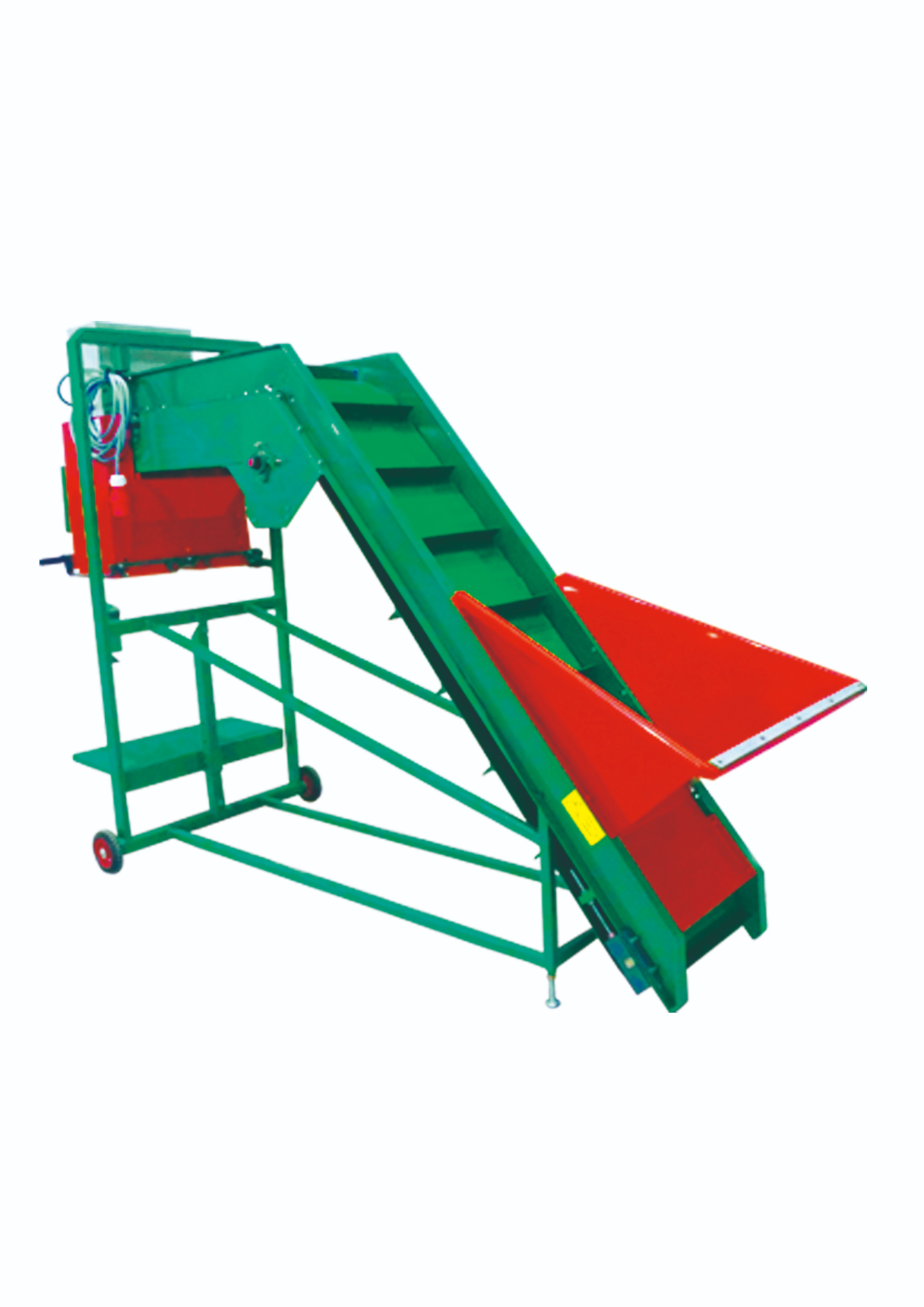

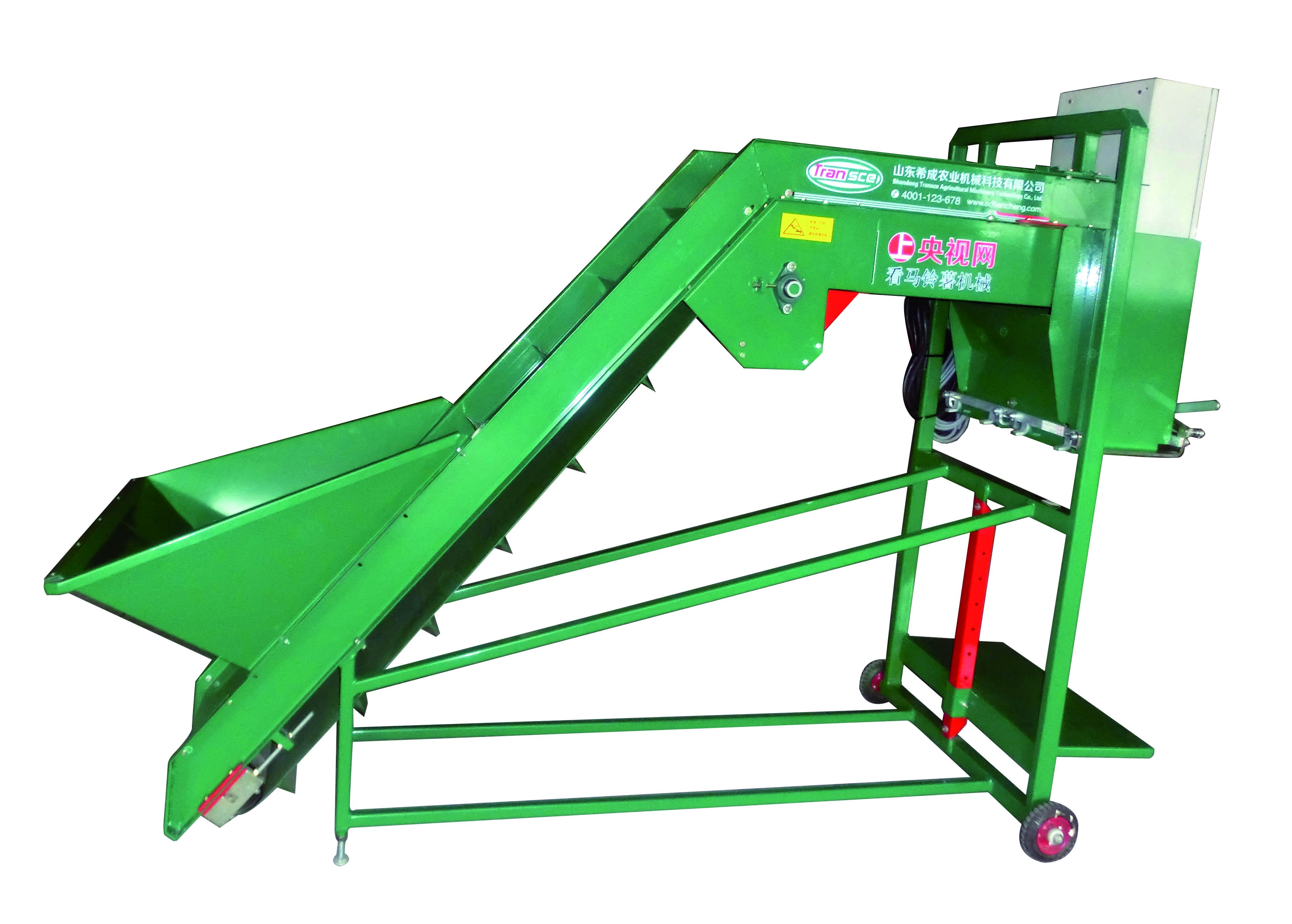

Machine Structure:
This machine mainly consists of a frame, support legs, bagging opening, conveyor belt, and electrical control system.
1. Frame: The frame connects and supports various components, maintaining the machine's balance and stability.
2. Adjusting Bolts: Used to support the potato bagging machine.
3. Bagging Opening: The main component of the potato bagging machine, used to fill the bags with potatoes.
4. Conveyor Belt: Used to transport the potatoes within the bagging machine.
5. Electrical Control System: The electrical control system mainly consists of a distribution cabinet, motor, and related components. It primarily controls
the potato bagging machine motor.
Working Principle:
After debugging and starting the equipment, potatoes are fed into the potato bagging machine via a conveyor belt or hand-sorting platform.
After bagging, the bagged potatoes are stacked or conveyed to the desired location.
An external 380V power supply is used to drive the equipment's geared motor.
| No. | Item | Unit | Parameter Index |
| 1 | Overall dimension | mm | 2720*1000*1884 |
| 2 | Machine weight | kg | 237 |
| 3 | Maximum processing capacity | t/h | 3 |
| 4 | Motor power | Kw | 0.38 |
| 5 | Damage rate | % | ≤1 |
| 6 | Rotating speed | m/s | 0.21 |
