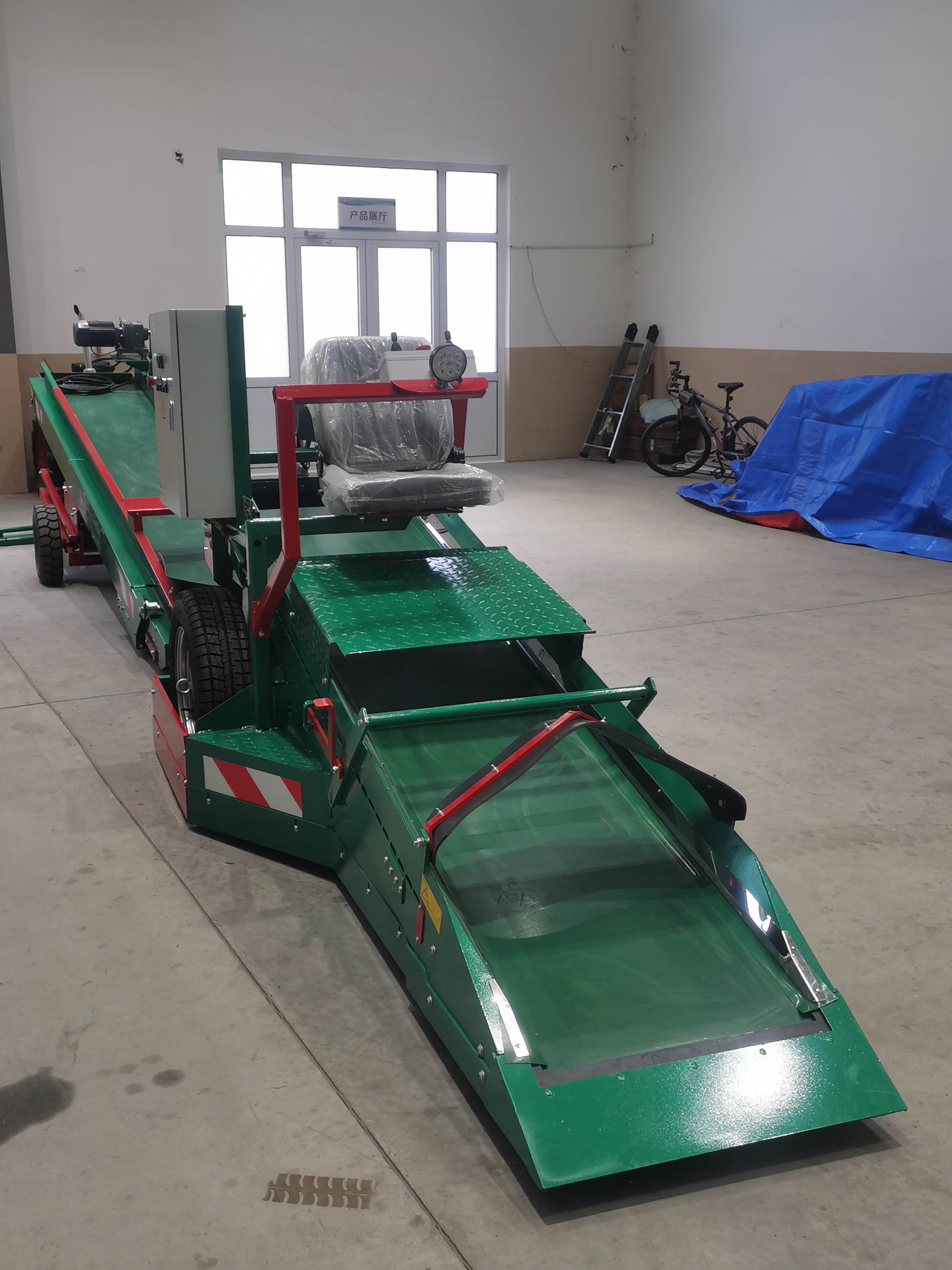

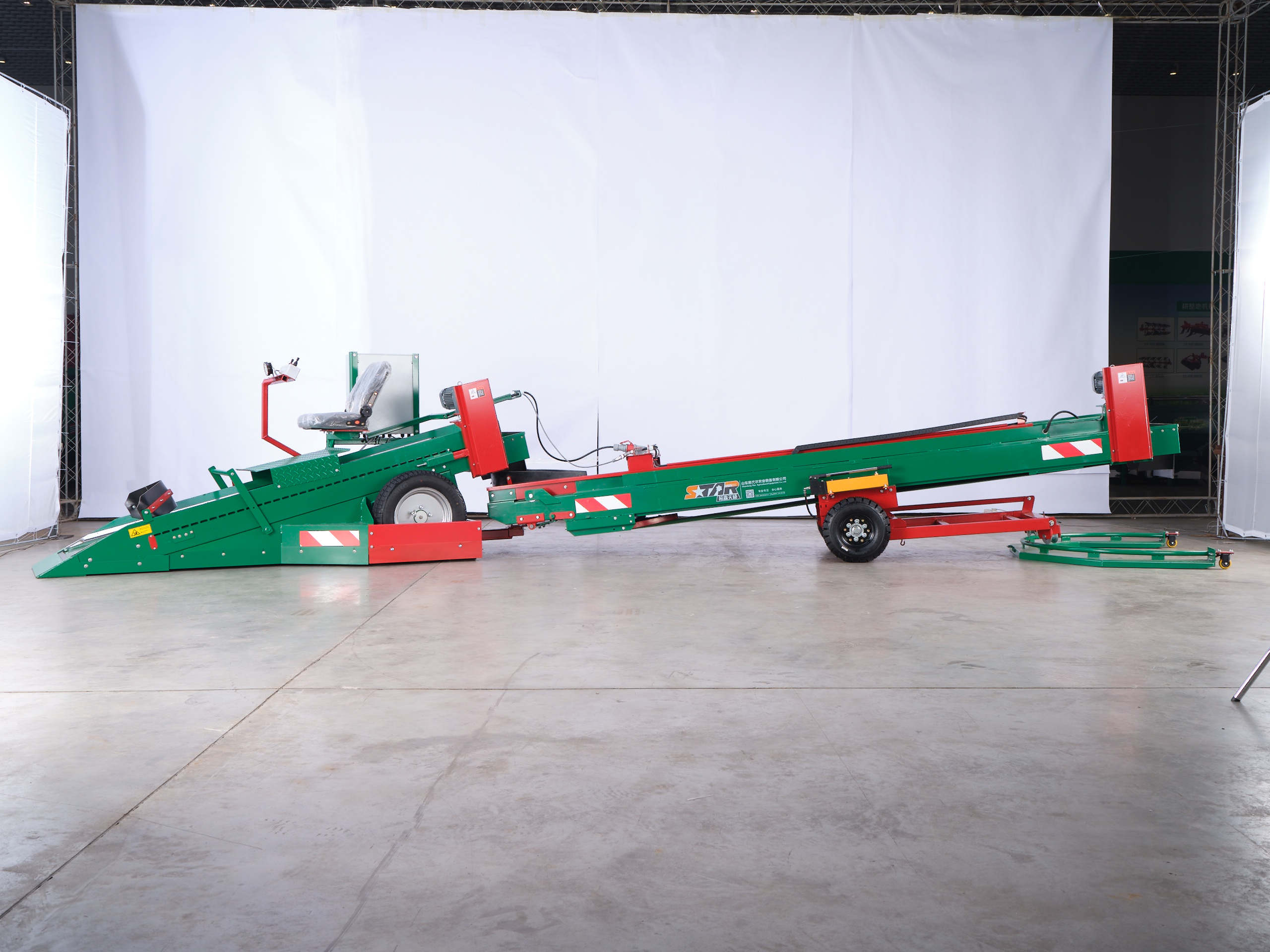

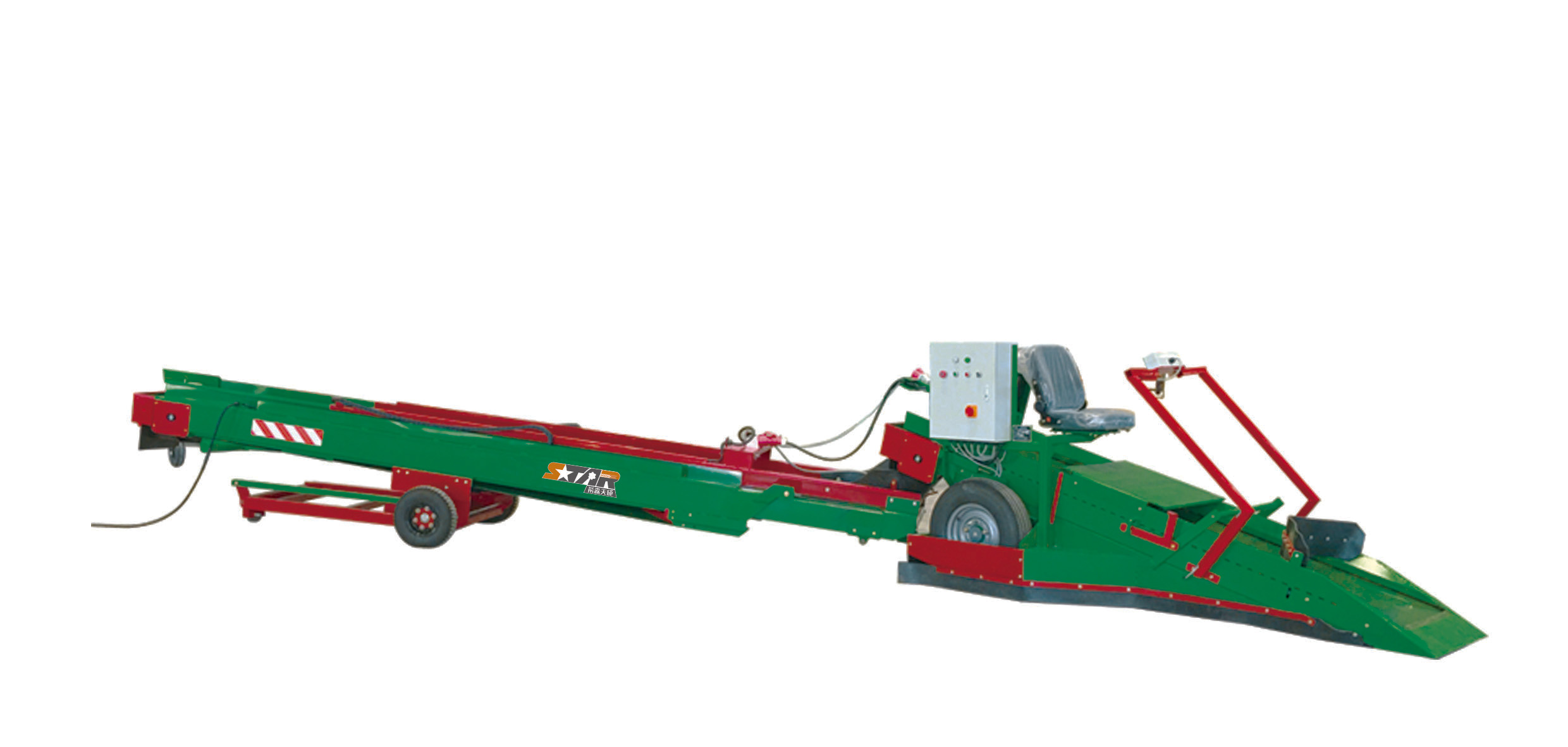

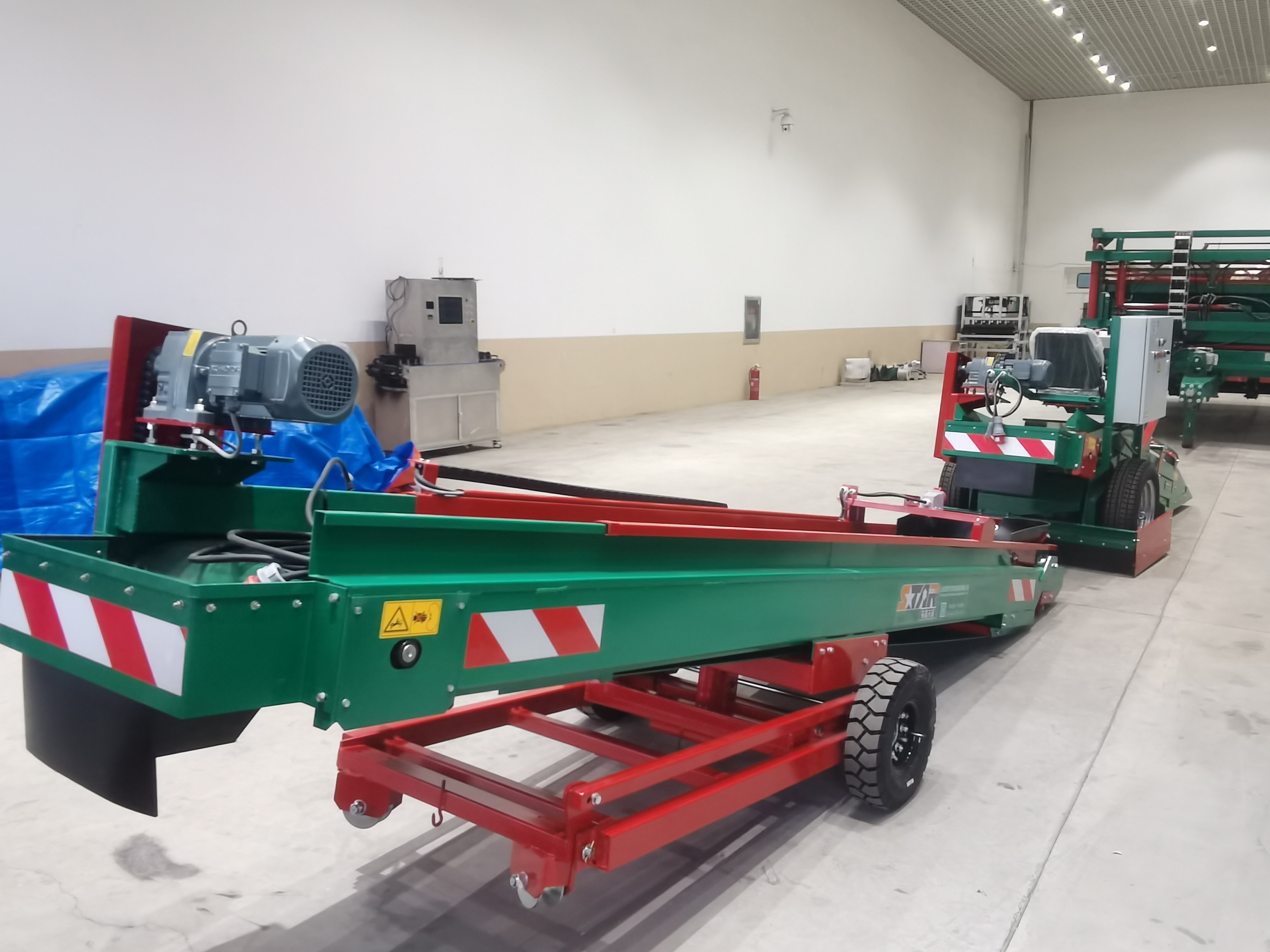

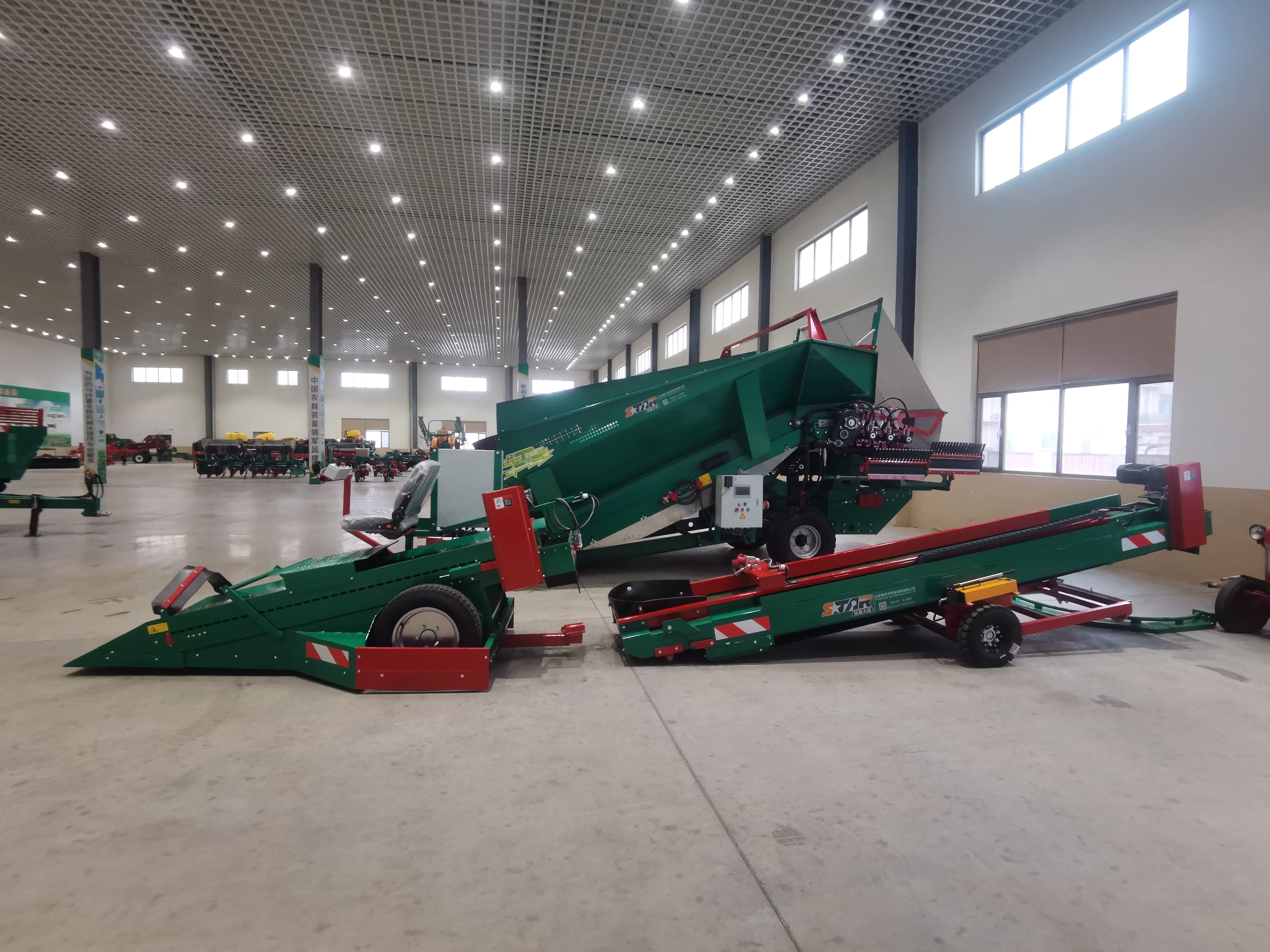

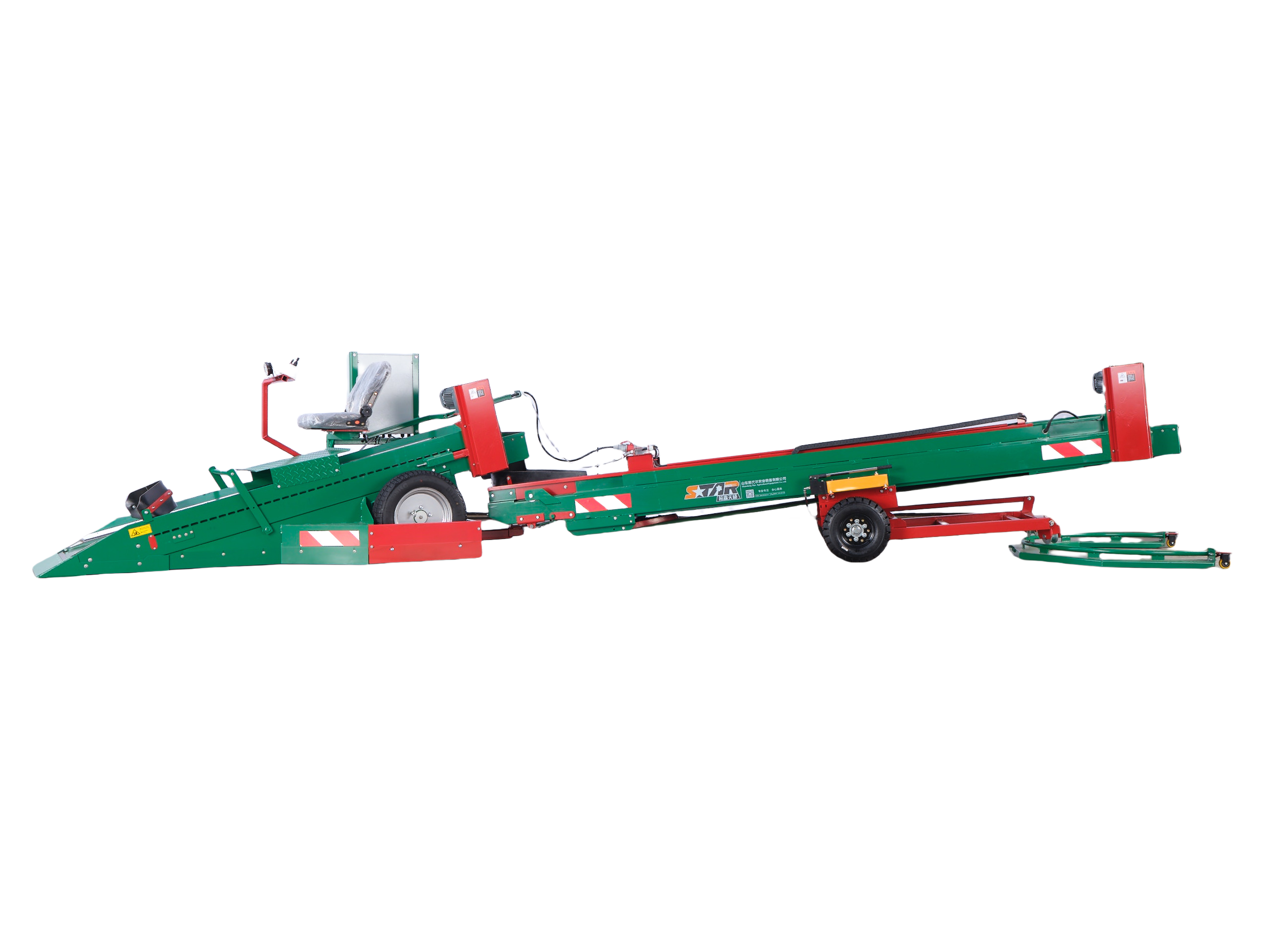

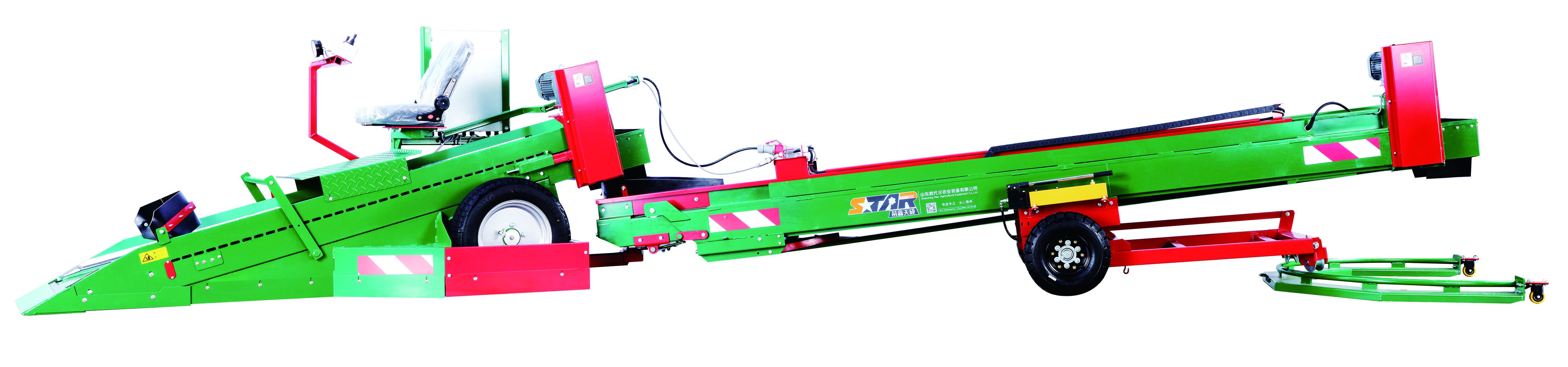

Potato Scooper 5SZ-40

This is a device suitable for conveying and unloading potatoes in fields and warehouses.

This machine can transfer and convey potatoes from warehouses or fields. It can be connected to other conveyor equipment at the rear. Its unique rotating chassis design,

electrical design, and telescopic structure ensure stable operation and comprehensive functionality.

When used in conjunction with other sorting equipment manufactured by our company, this machine can achieve coordinated control, improving work efficiency and

effectively ensuring human and machine safety.

This equipment is simple to operate, practical, and efficient, suitable for large warehouses, and can achieve optimal warehouse space utilization.

Machine Structure:

The 5SZ-40 potato unloading machine mainly consists of a feeding device, a telescopic conveyor, a rotating chassis, and an electrical control system.

Working Principle:

Move the entire machine to the warehouse or field work area (at this time, the equipment is not powered on, the front casters are raised, and the rotating chassis is not

connected). Place the rotating chassis in the working position, and operate the jacks of the retractable conveyor to engage the grooves of the metal wheels with the chassis.

Select and connect the power port to the desired work location. Attach the conveyor belt to the rear of the machine and adjust its orientation.

Before operation, ensure all equipment on the entire conveyor line is ready to work. Position this machine at the front and start all equipment sequentially from back to front.

Start the machine's conveyor motor to put the entire machine into operation.

The operator sits in the machine's seat and uses the control handle to extend, rotate, and load potatoes via the conveyor belt to the target location.

The operator can move the machine short distances according to the potato stacking arrangement until loading is complete.

Product Advantages:

1. The side wheels are individually controllable for convenient steering. The control handle is a cross switch with an automatic reset function, making operation simple and

easy to learn.

2. The angle and ground clearance of the collecting shovel can be adjusted during operation to prevent damage or leakage of potatoes during loading.

3. The machine's operating radius is 6-10 meters, offering a wide adjustable range and greater adaptability.

4. This equipment can be used in conjunction with single-layer and double-layer conveyors, offering strong versatility and significantly reducing equipment purchase costs

and expenses.

5. Key electrical components and important parts of the silo unloading machine are all imported brands, ensuring the equipment's durability and reliability.
