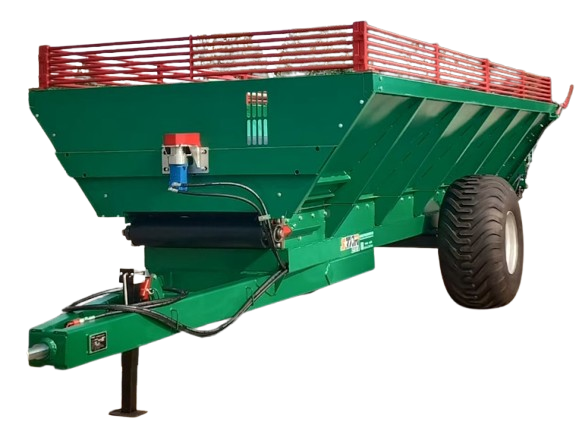

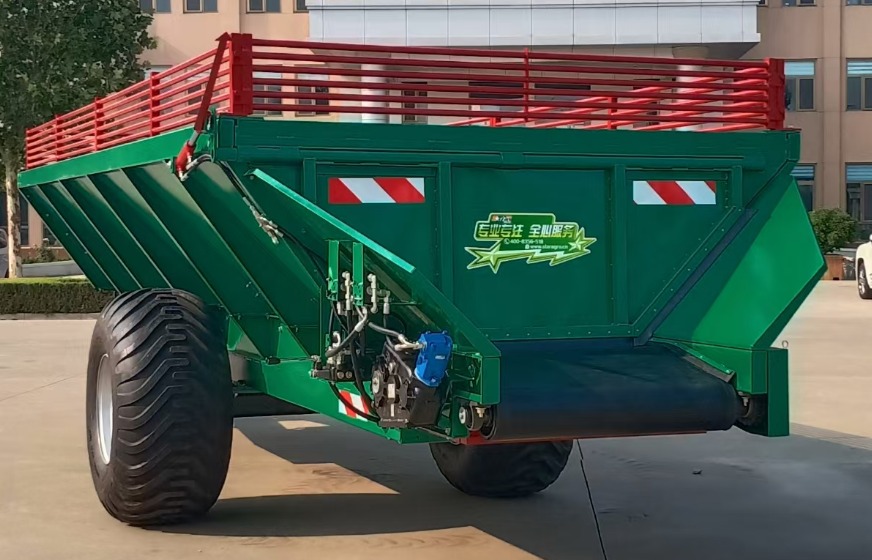

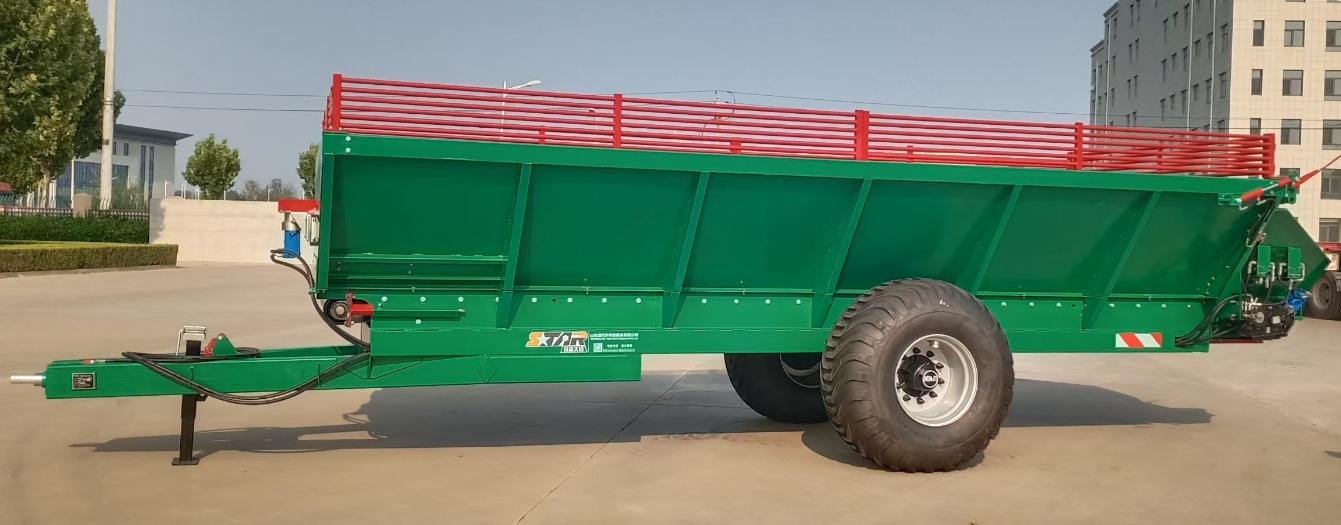

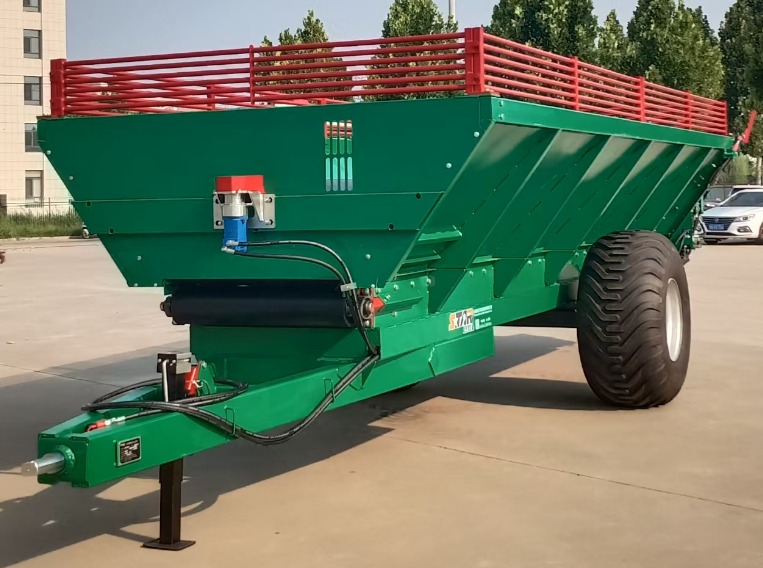

Machine Structure:
This machine mainly consists of a frame, wheel assembly, power system, and storage bin.
Frame: The frame is the base of the transport vehicle, welded together from horizontal and longitudinal beams. Supported by the wheels via the axles, it provides the foundation for the storage bin installation and is the main component bearing the weight of the vehicle body and materials.

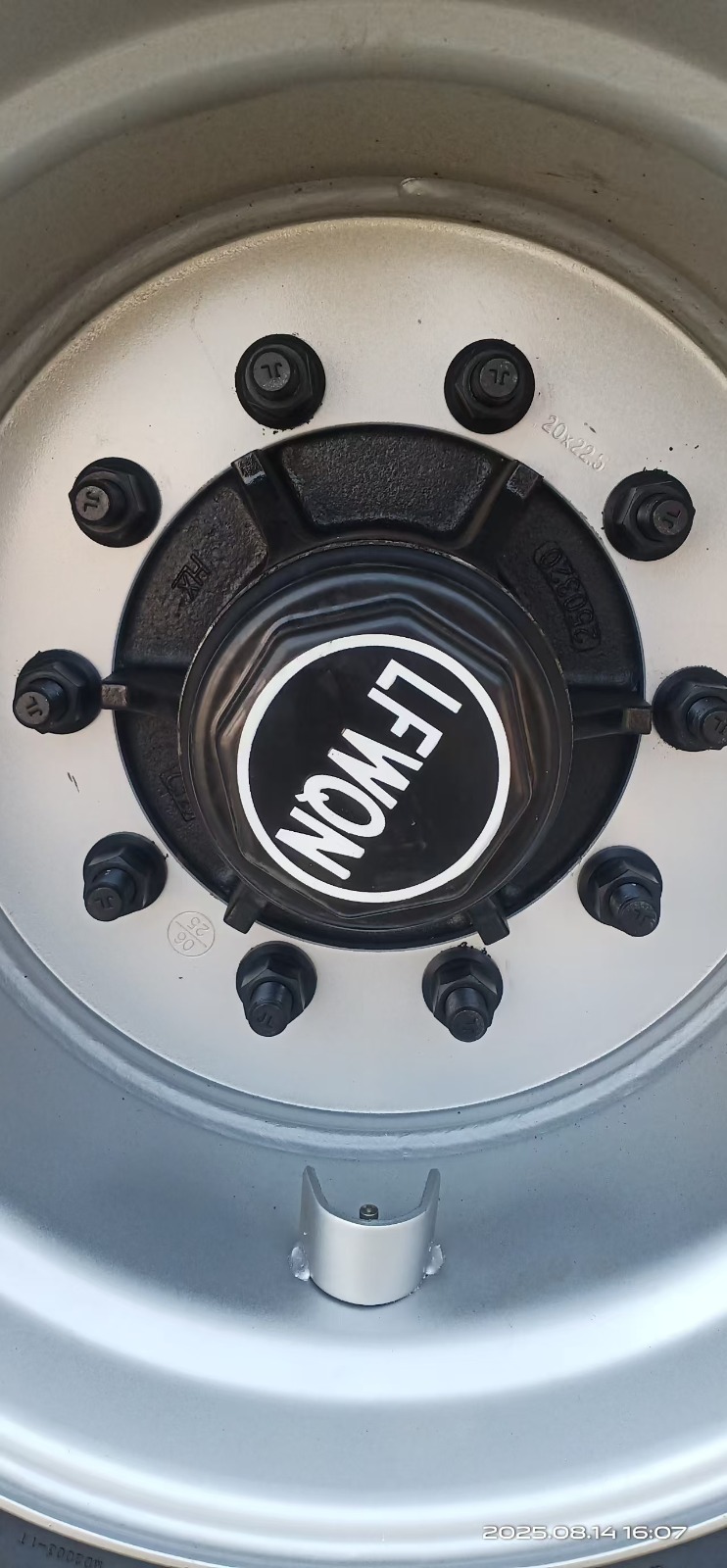

Wheel Assembly: The wheel assembly supports the transport vehicle and enables movement.
Power System: The transport vehicle uses a hydraulic power system, with power input from a tractor. A hydraulic motor drives the gearbox to achieve propulsion, enabling the vehicle's self-unloading function.
Storage Bin: The transport vehicle's storage bin has a capacity of 12 tons, providing ample storage to meet user needs.
| Item | Unit | Parameter Index |
| Structural style | / | Trailed |
| Overall dimension | mm | 9064*2671*2365 |
| Machine weight | kg | 4090 |
| Supporting power | hp | 160-220 |
| Maximum load | T | 12 |
| Conveying belt speed | m/s | 0-1.6（ Adjustable） |
| Conveyor belt width | mm | 1000 |
| Conveyor belt drive | / | Hydraulic motor reducer |
| Walking speed | Km/h | ≤35 |
| Tire model | / | 600/55-22.5 |
| Number of axles | / | 1 |
| Efficiency | t/h | 50 |
| Volume | ㎡ | 14.9 |
