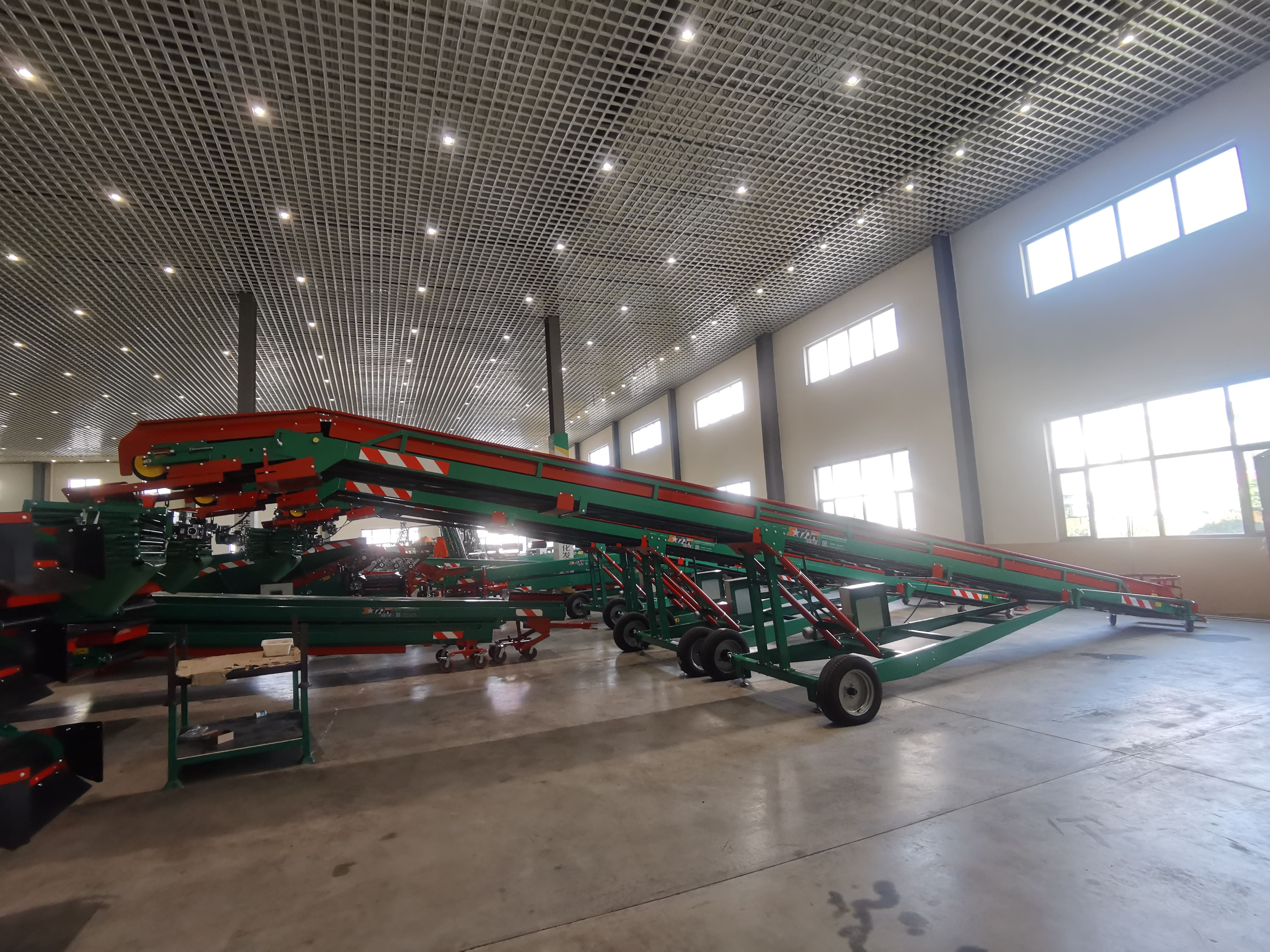

Potato Loading Conveyor 5SG-40

After potatoes are transported via conveyor equipment, the loading machine transfers them to trucks. Its unique chassis design, hydraulic system, and electrical design ensure

stable operation and comprehensive functionality.

When used in conjunction with other sorting equipment manufactured by our company, this equipment enables coordinated control, improving work efficiency while effectively

ensuring operator and machine safety. The equipment is simple to operate, practical, and efficient.

It is suitable for large warehouses and can achieve optimal warehouse space utilization.

Machine Composition:

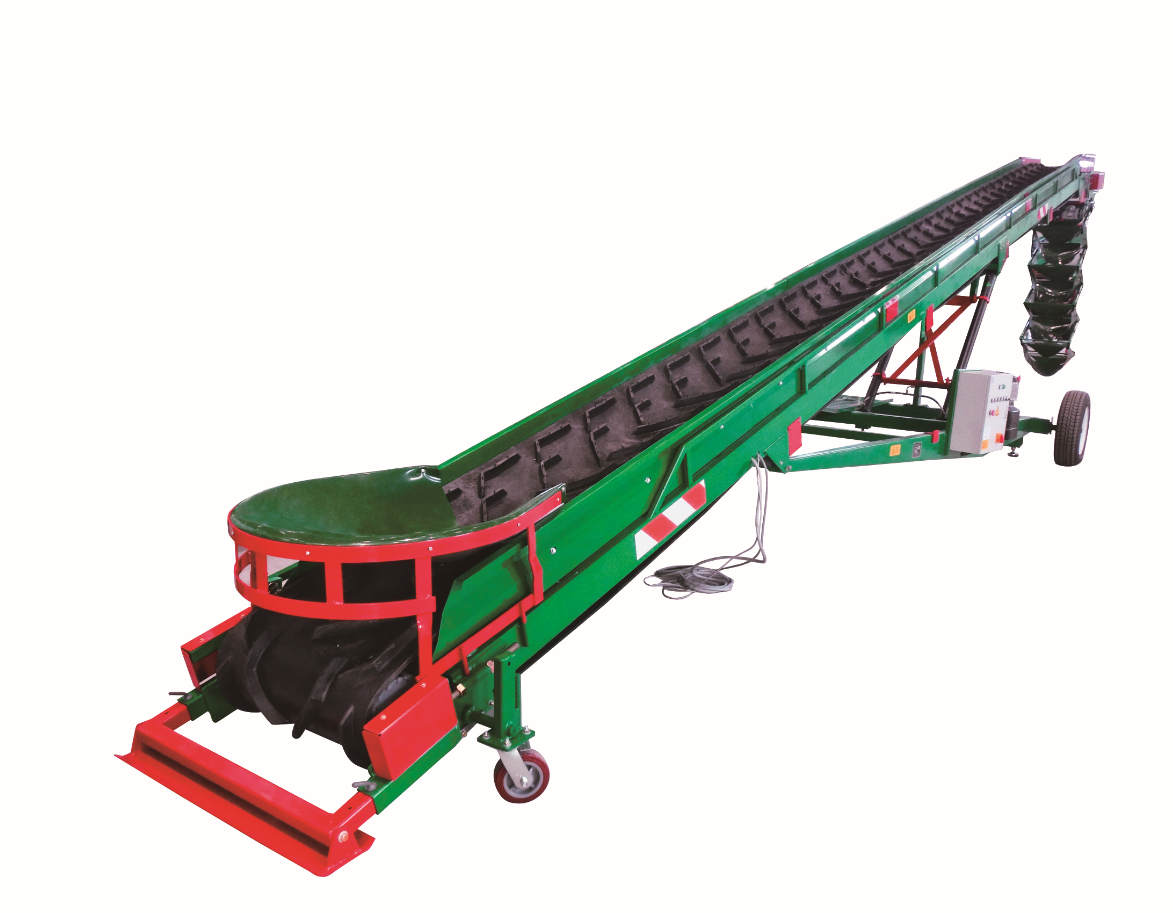

The 5SG-40 potato loading conveyor mainly consists of a base, main frame, buffer device, hydraulic system, and electrical control system.

1. Base: The base of the potato loading conveyor connects to the electrical control cabinet, hydraulic pump station, lifting cylinder, support feet, and left and right steering wheels.

 As the chassis of the entire machine, it connects and secures the equipment.

2. Main Frame: Connected to the lifting cylinder, base, receiving hopper, conveyor belt drive unit, etc., internally containing the conveyor belt and support rollers.

3. Conveyor Belt Drive Unit: Connected to the telescopic frame, with a tensioning drive unit at the end. The drive motor is dual-speed, providing power for the potato conveyor belt.

The top-mounted drive motor effectively prevents conveyor belt slippage.

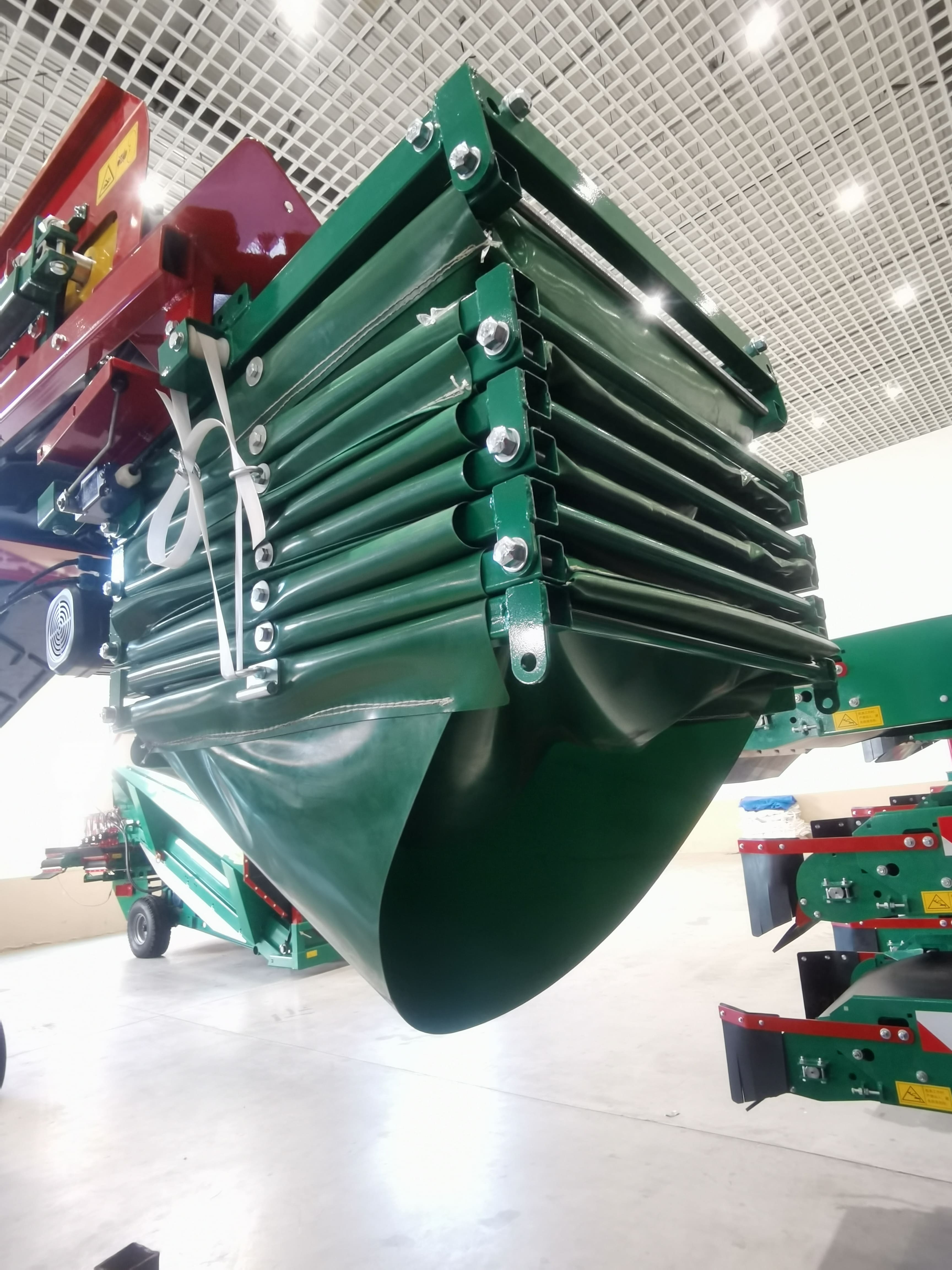

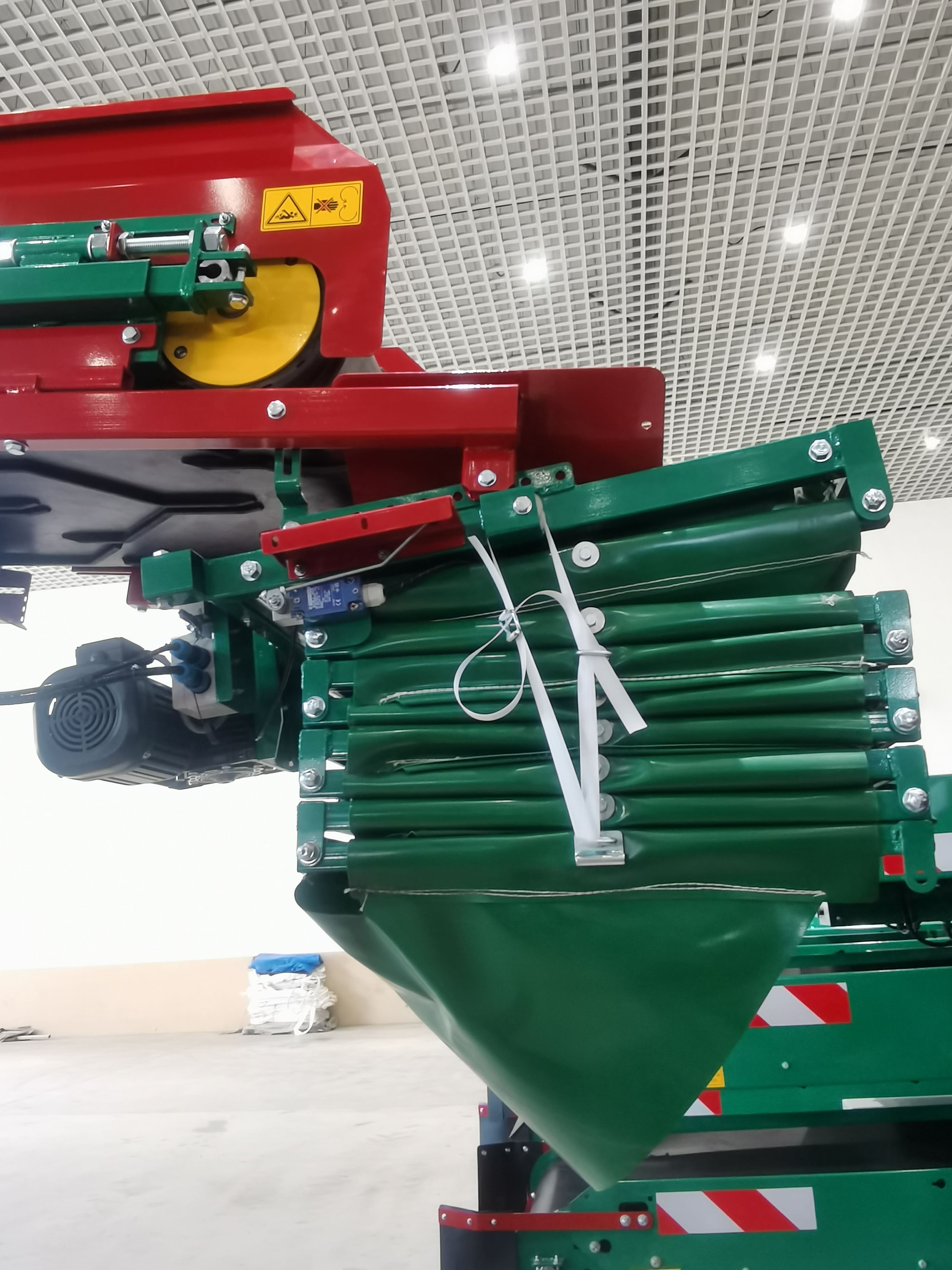

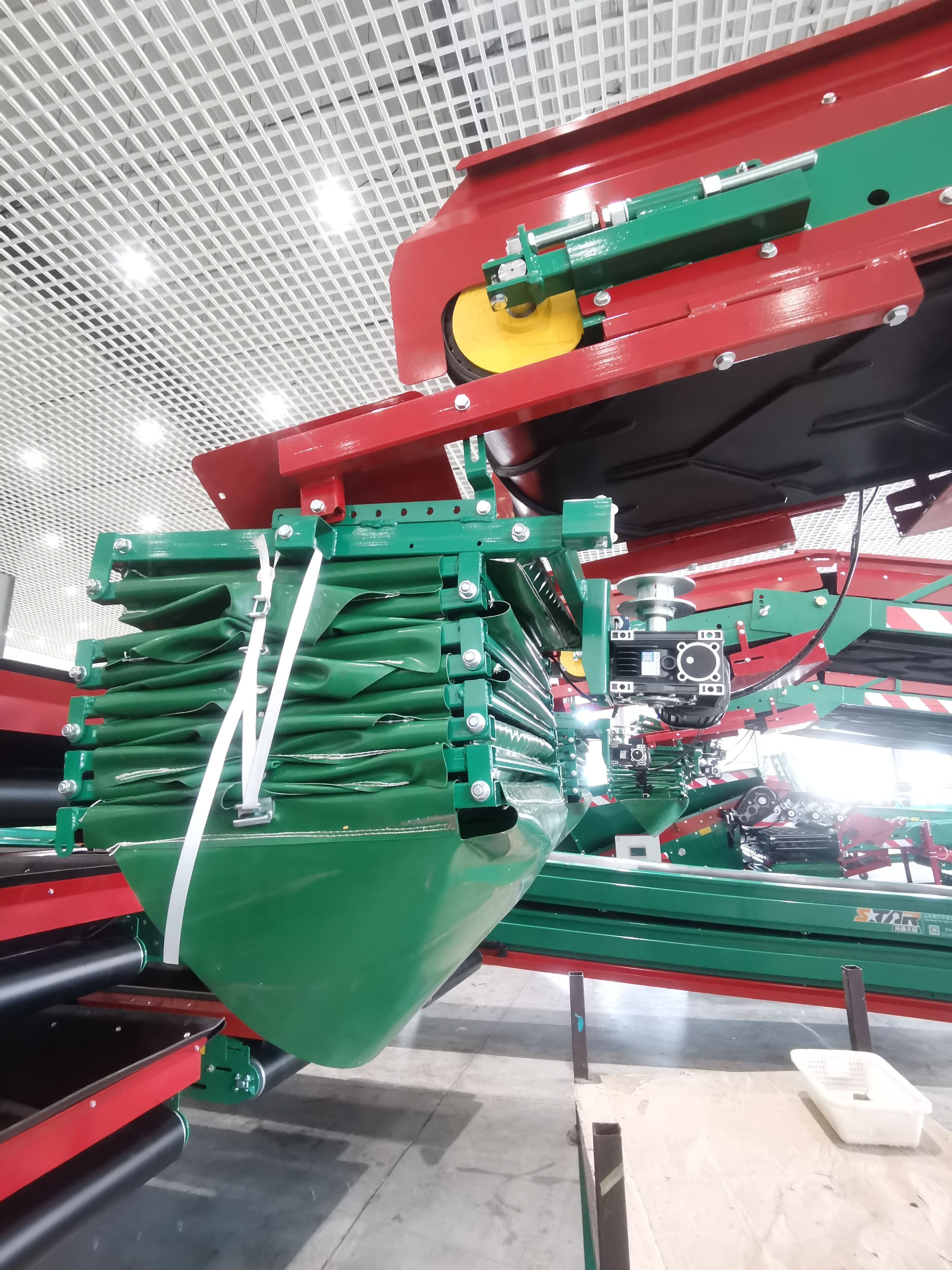

4. Buffer Hopper: Connected to the end of the conveyor belt drive unit, the hopper frame's extension and retraction are controlled by a motor and limit photoelectric switches,

buffering the incoming material.

5. Hydraulic System: The hydraulic height control system mainly consists of an electric hydraulic pump station, hydraulic lock, single-acting cylinders, double-acting cylinders,

hydraulic hoses, etc., primarily used to control the support of the counterweight base and the lifting and locking of the main frame.

6. Electrical System: The electrical control system mainly consists of a distribution box, connection socket, motor, photoelectric switches, and related components, equipped with a

5-meter flexible cable. The equipment allows for speed control of the conveyor belt, and the telescopic motor and limit photoelectric switches control the extension and retraction of

the buffer hopper. When connected to other equipment, one-button start control is possible between devices.

Working Principle: The entire machine is moved to the warehouse or field work area (at its lowest height).

The two tires and two casters allow for short-distance movement and orientation adjustment of the loading machine, positioning it in the working position.

The power port for the working position is selected and connected. The orientation is adjusted according to the location of the connected equipment and the truck. The height of the

loading machine is adjusted to the appropriate position using a manual hydraulic pump station. The conveyor motor is started, and the entire machine is ready for operation.

After potatoes are transported by the cleaning and conveyor belt equipment, they fall into the receiving hopper of the loading machine. The conveyor belt then transports the

potatoes to the buffer hopper at the top of the loading machine, where they finally fall into the target position. The operator can control the extension and retraction of the buffer

hopper based on the potato stacking pattern until the truck is fully loaded.
