Product Introduction
3ZMP-130 Potato Cultivator is an agricultural machinery used in potato cultivating soil, which can complete the operation of loose soil, weeding, ridge construction and top dressing, and both to improve the temperature and soil moisture.
Through the replacement of different parts of the work, to complete the cultivation of weeding, deep pine, soil, ditch and other operations. Can be in the film on the ground operations, but also in the open field operations. Its line spacing, depth of cultivation can be adjusted in a wide range. With reasonable structure, easy operation and maintenance, wide applicability and so on.

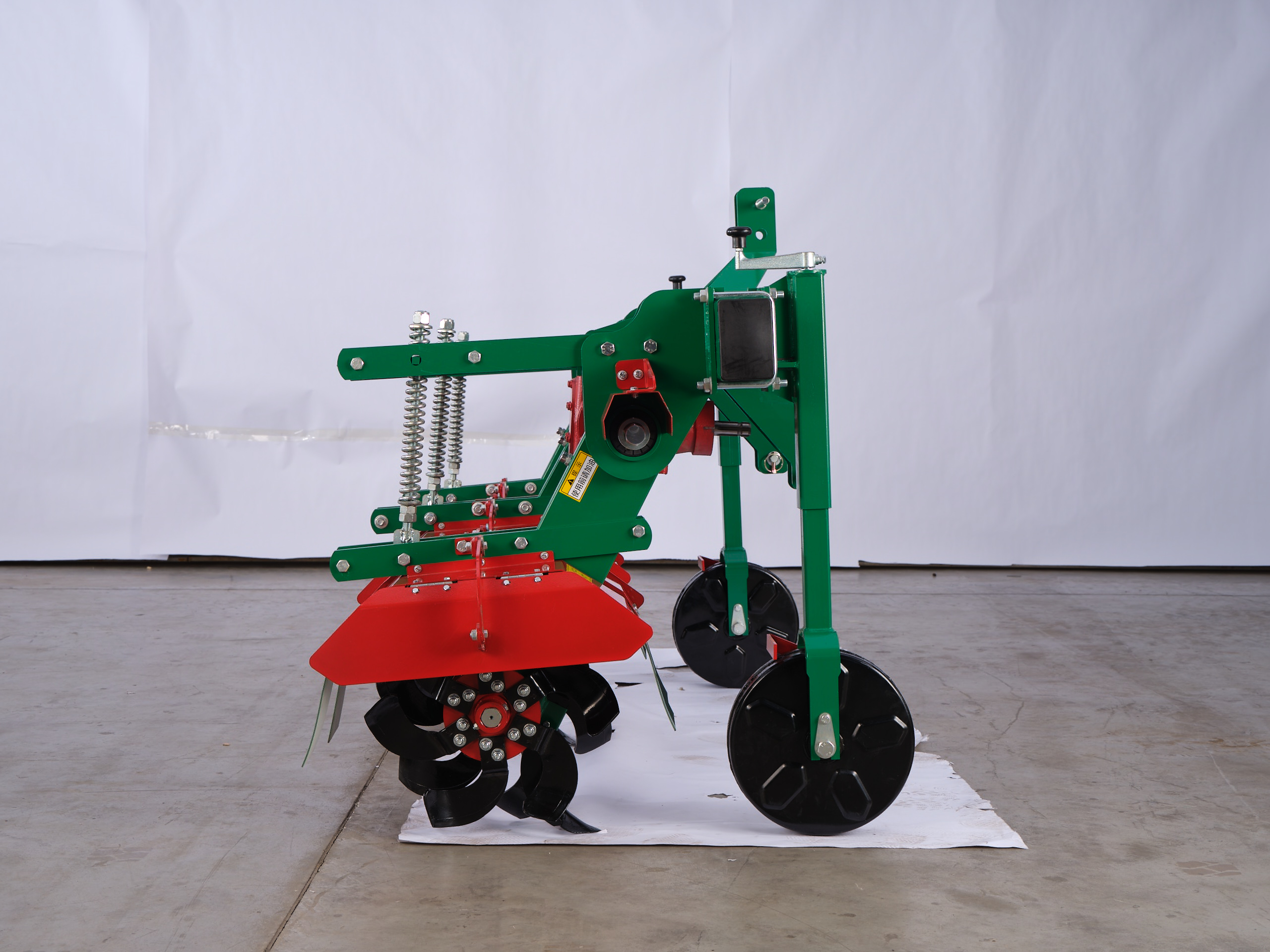

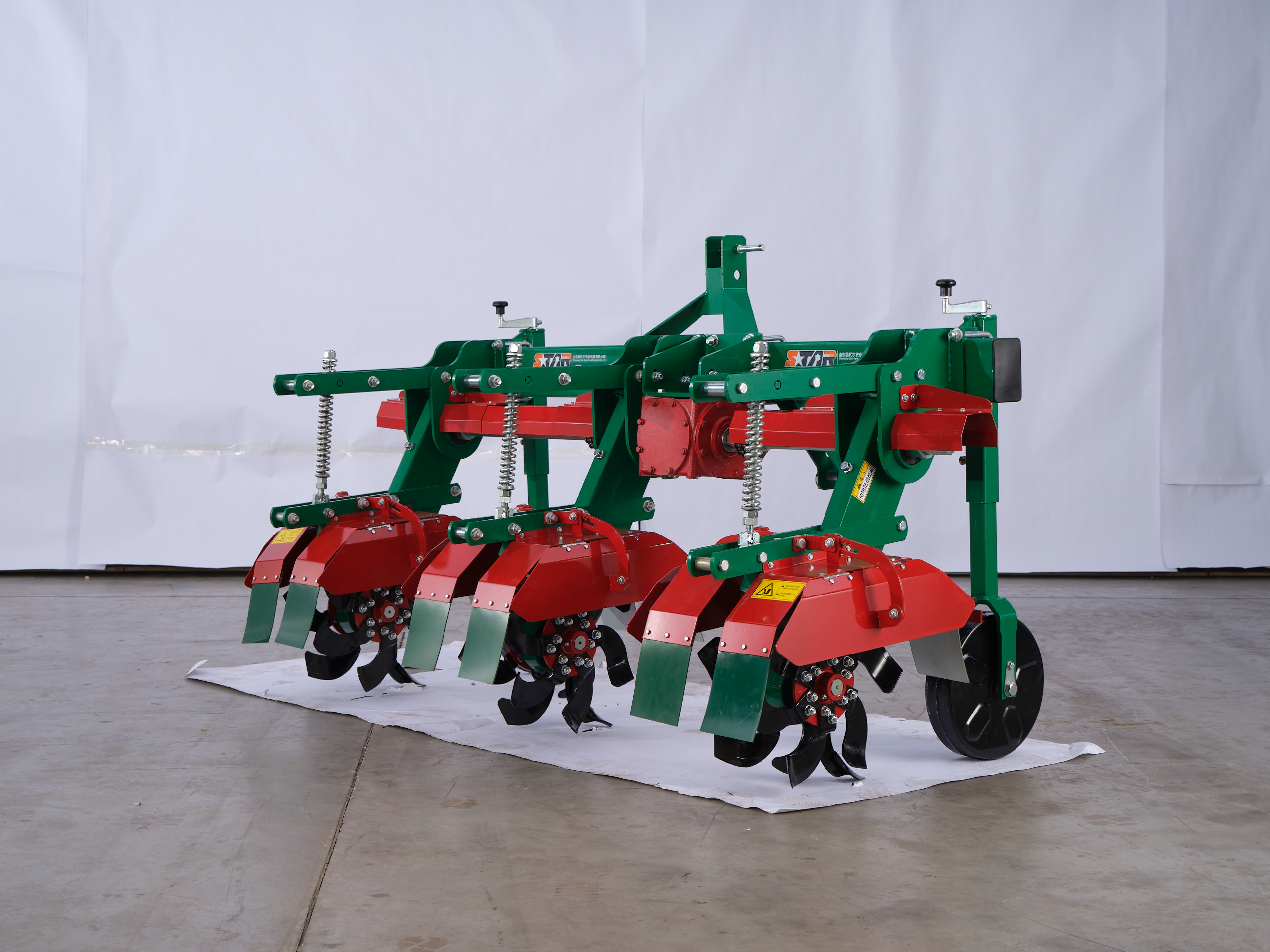

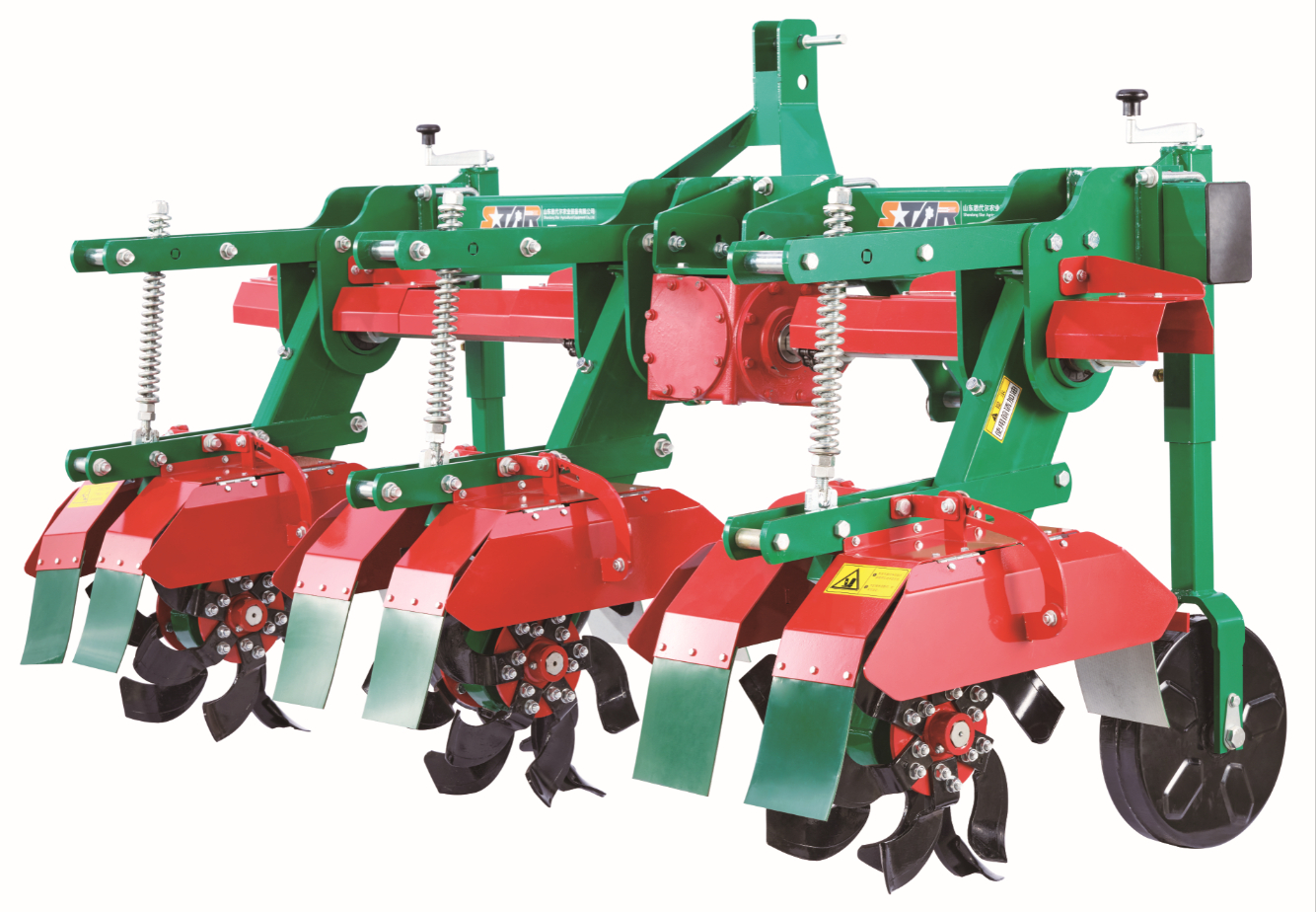

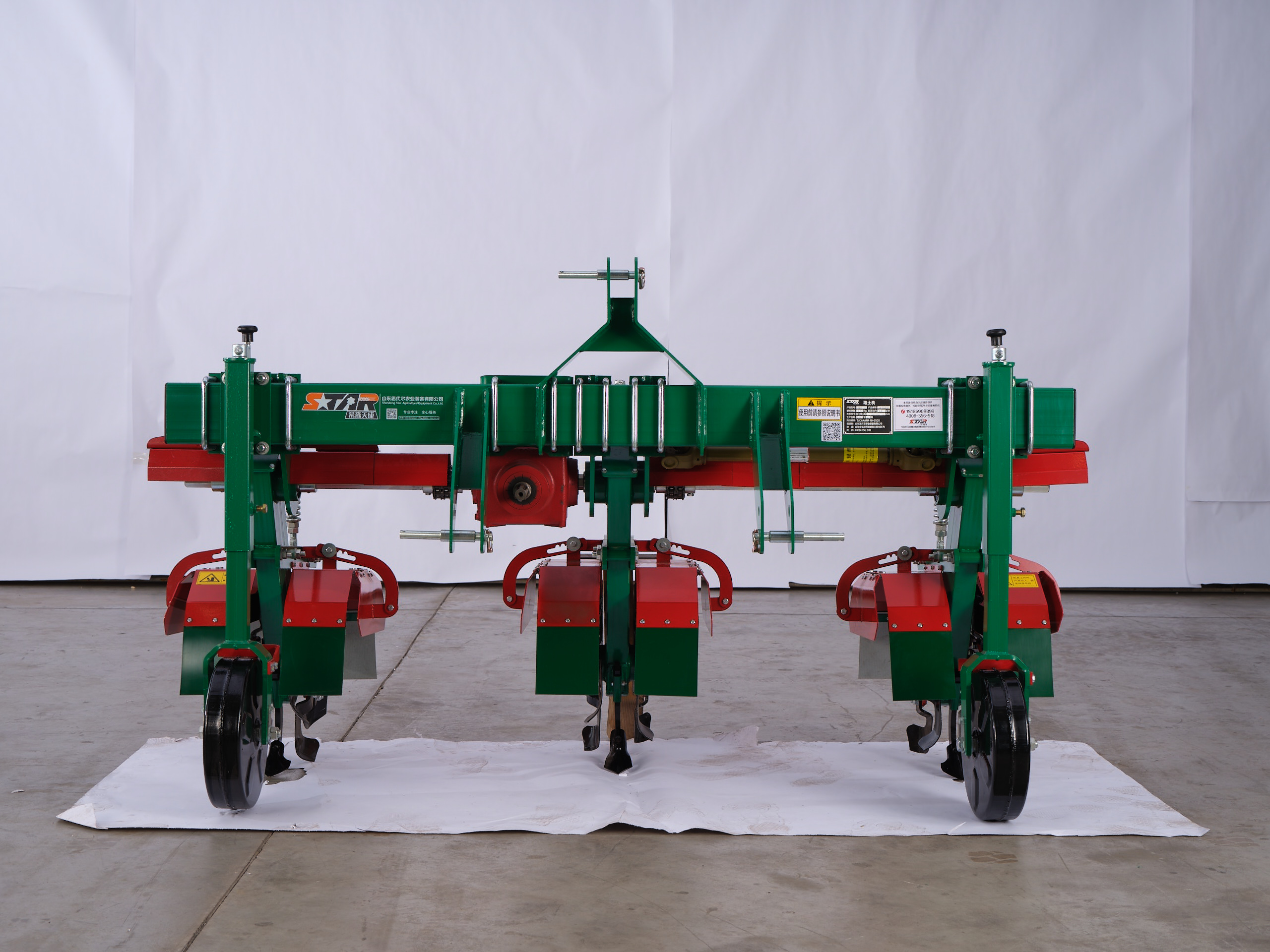

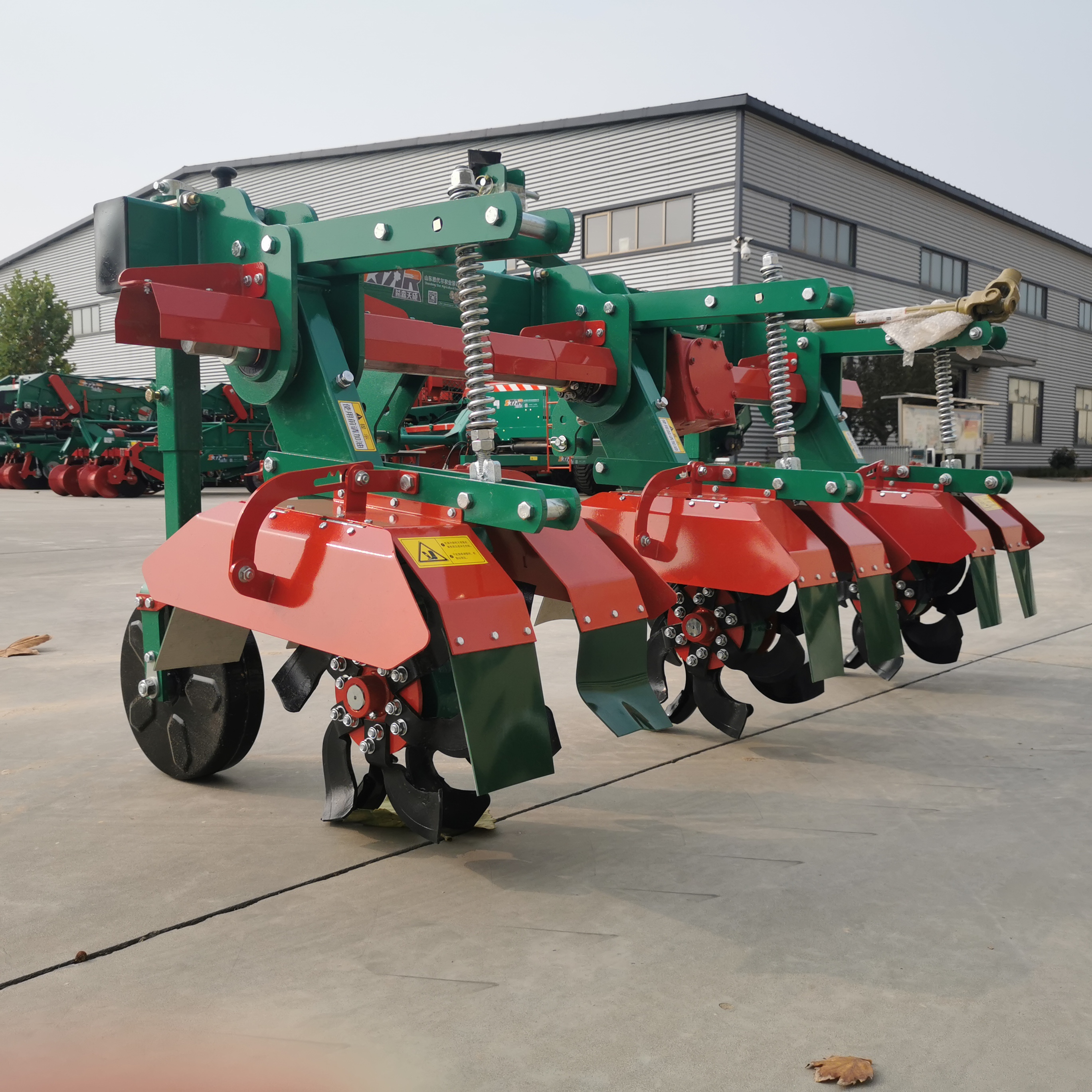

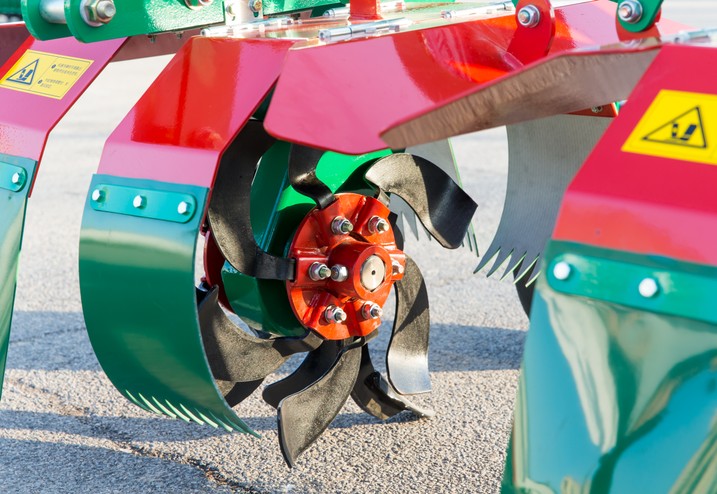

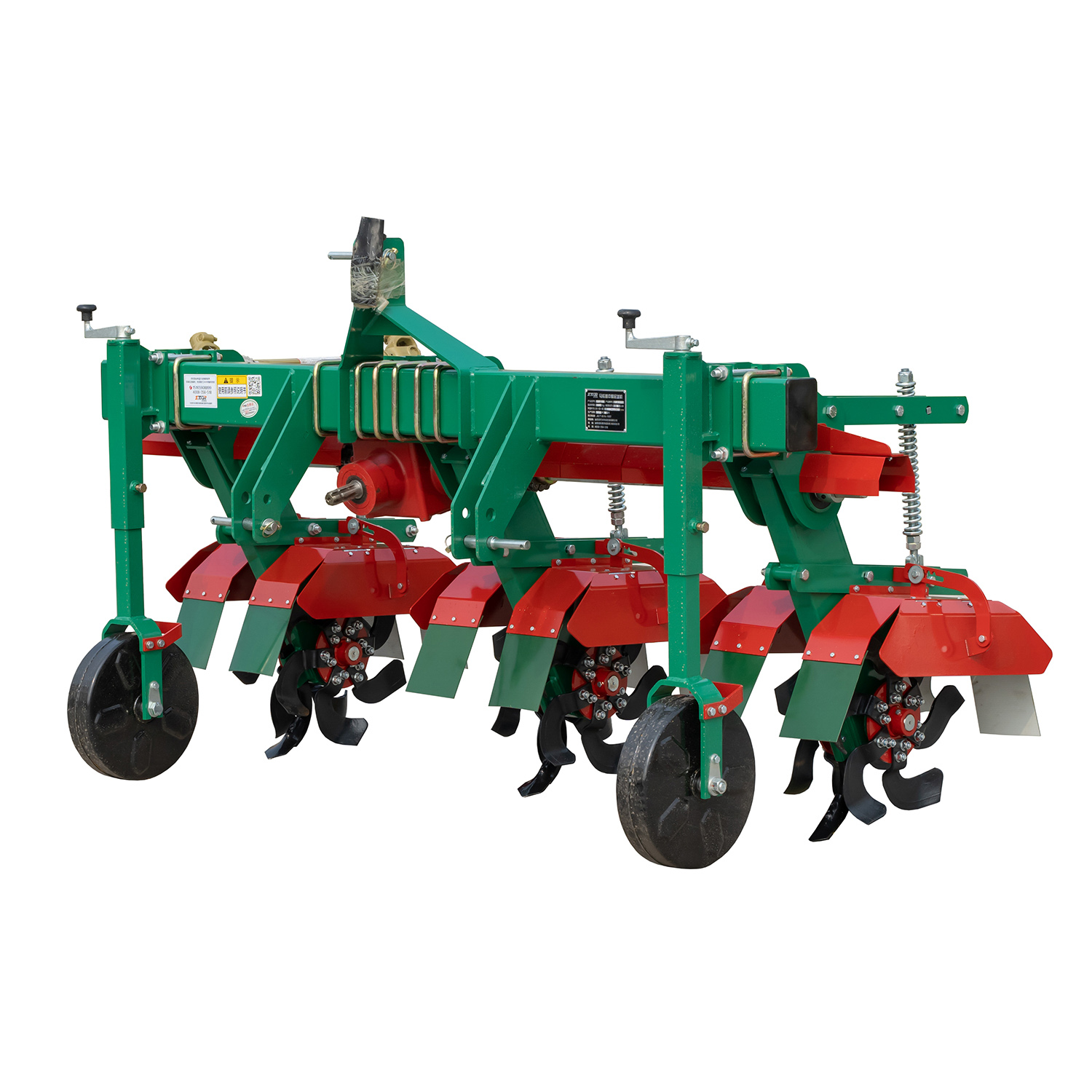

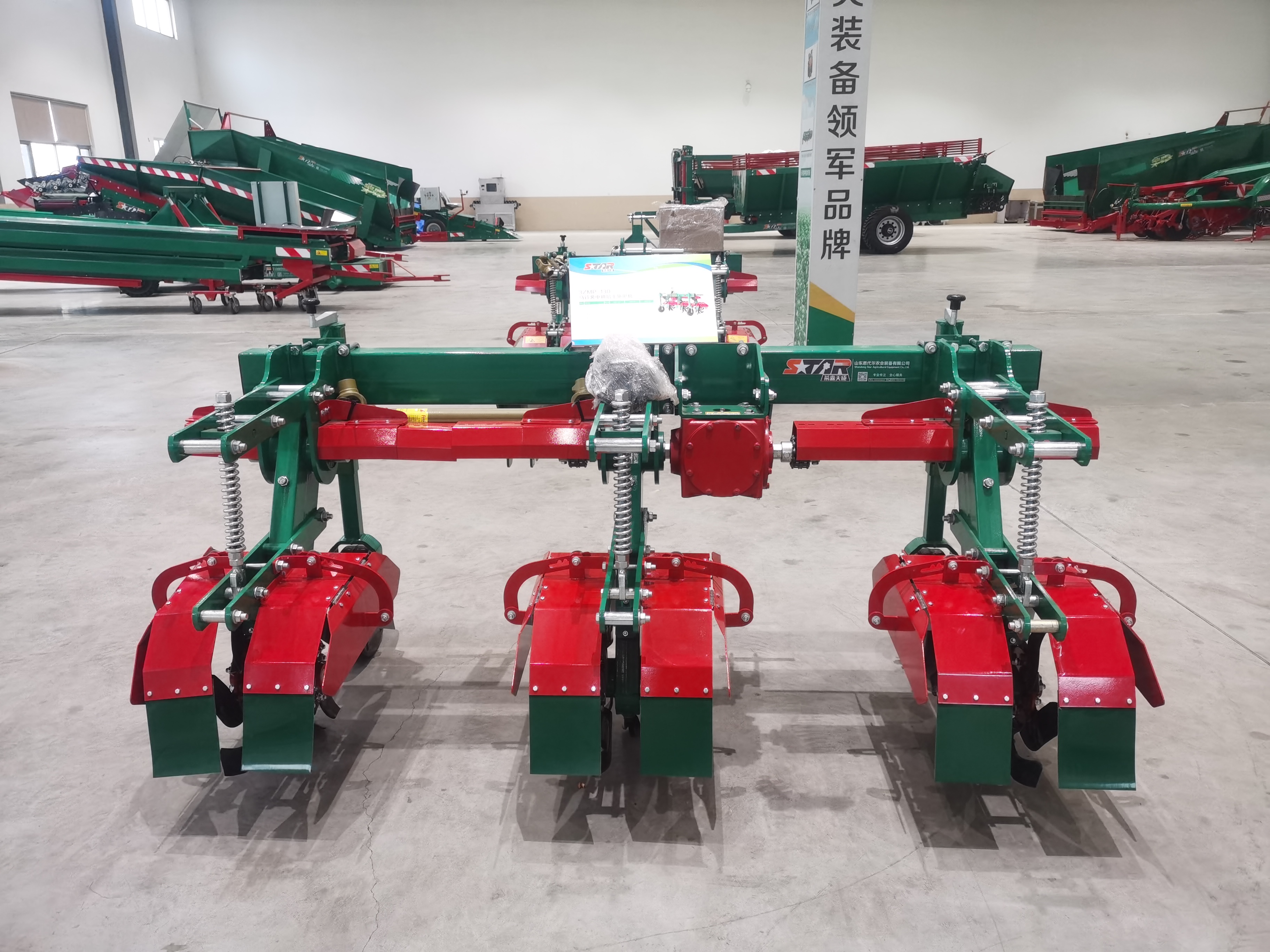

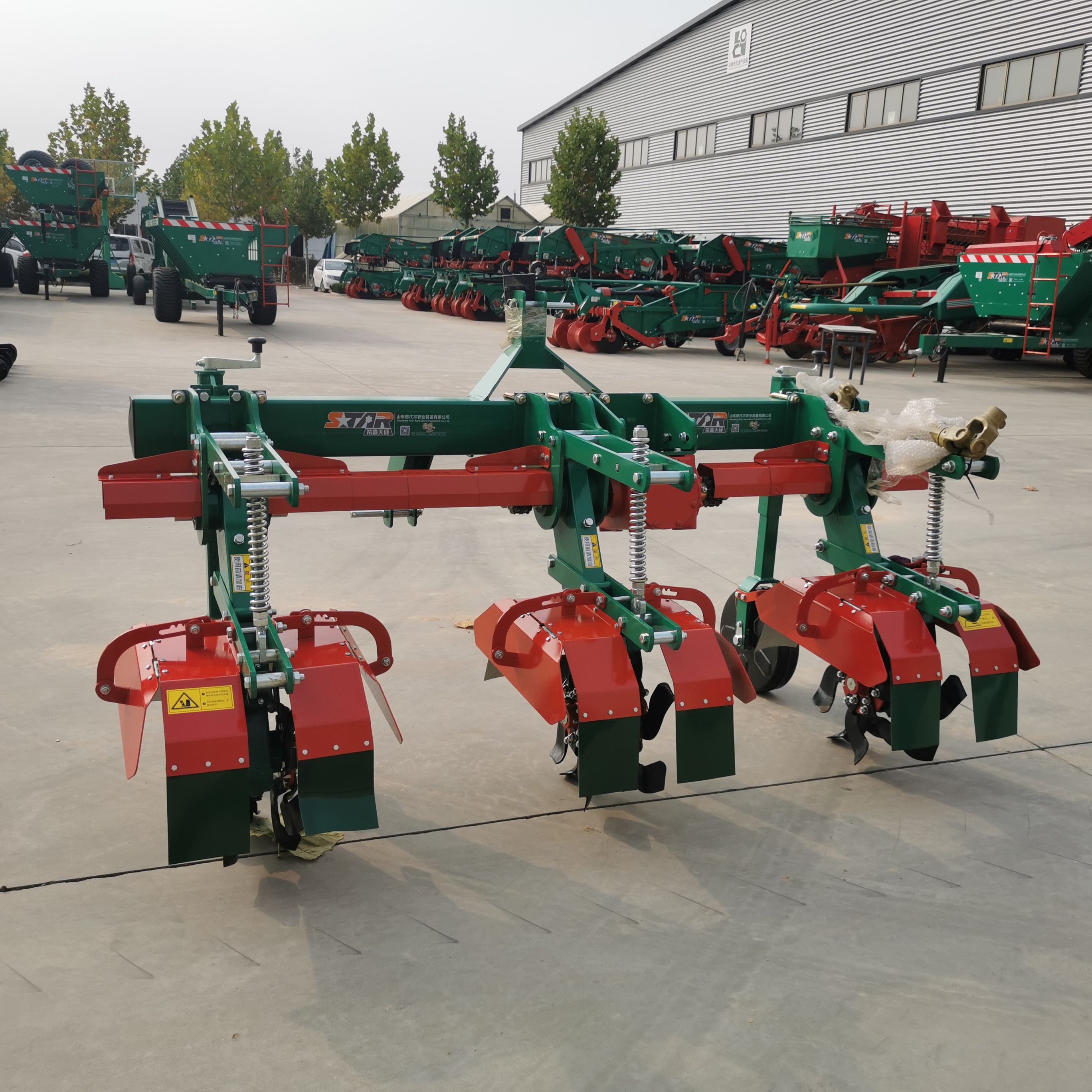

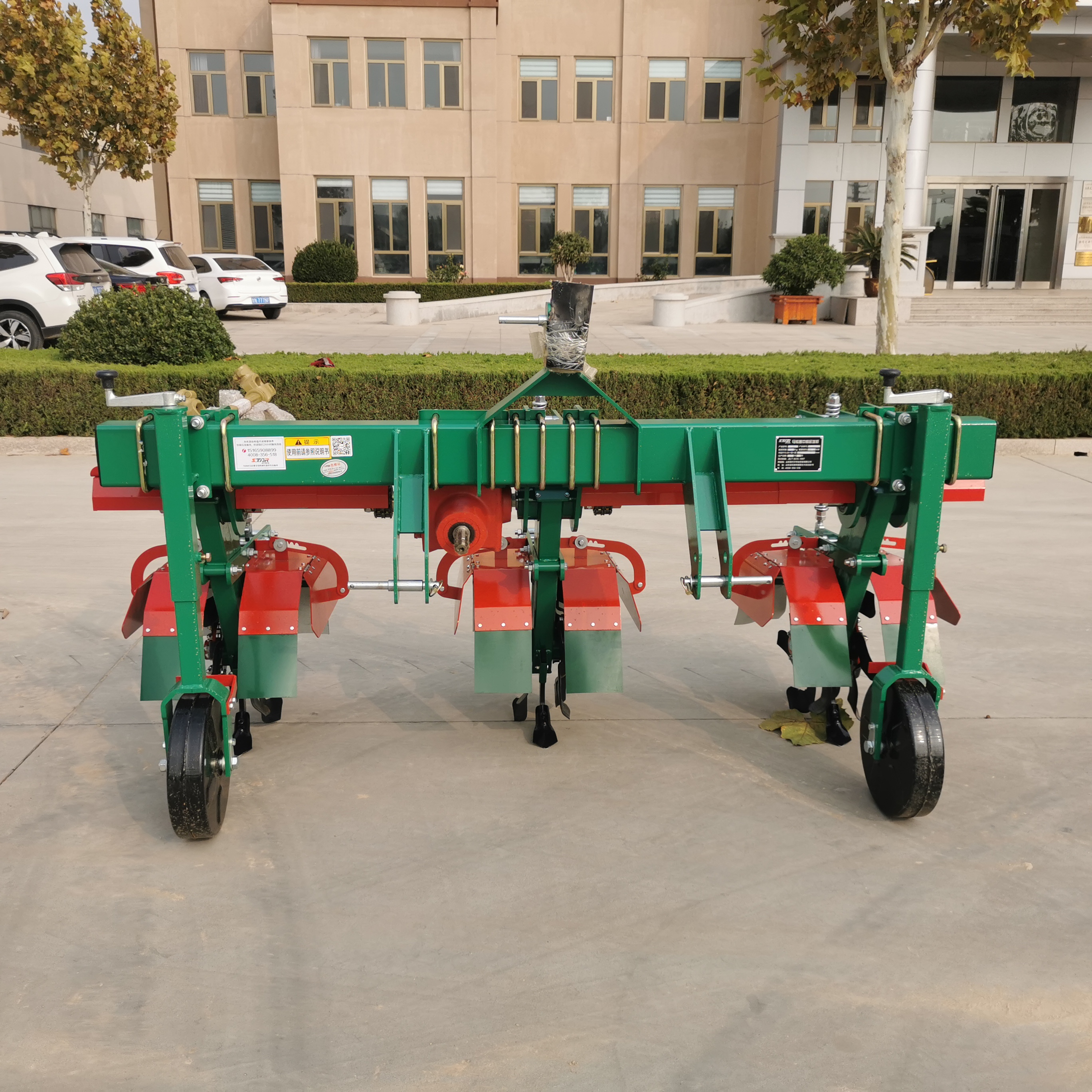

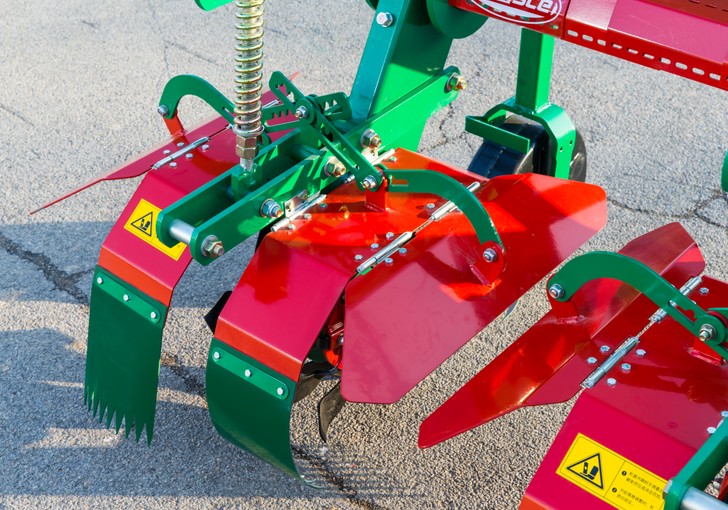

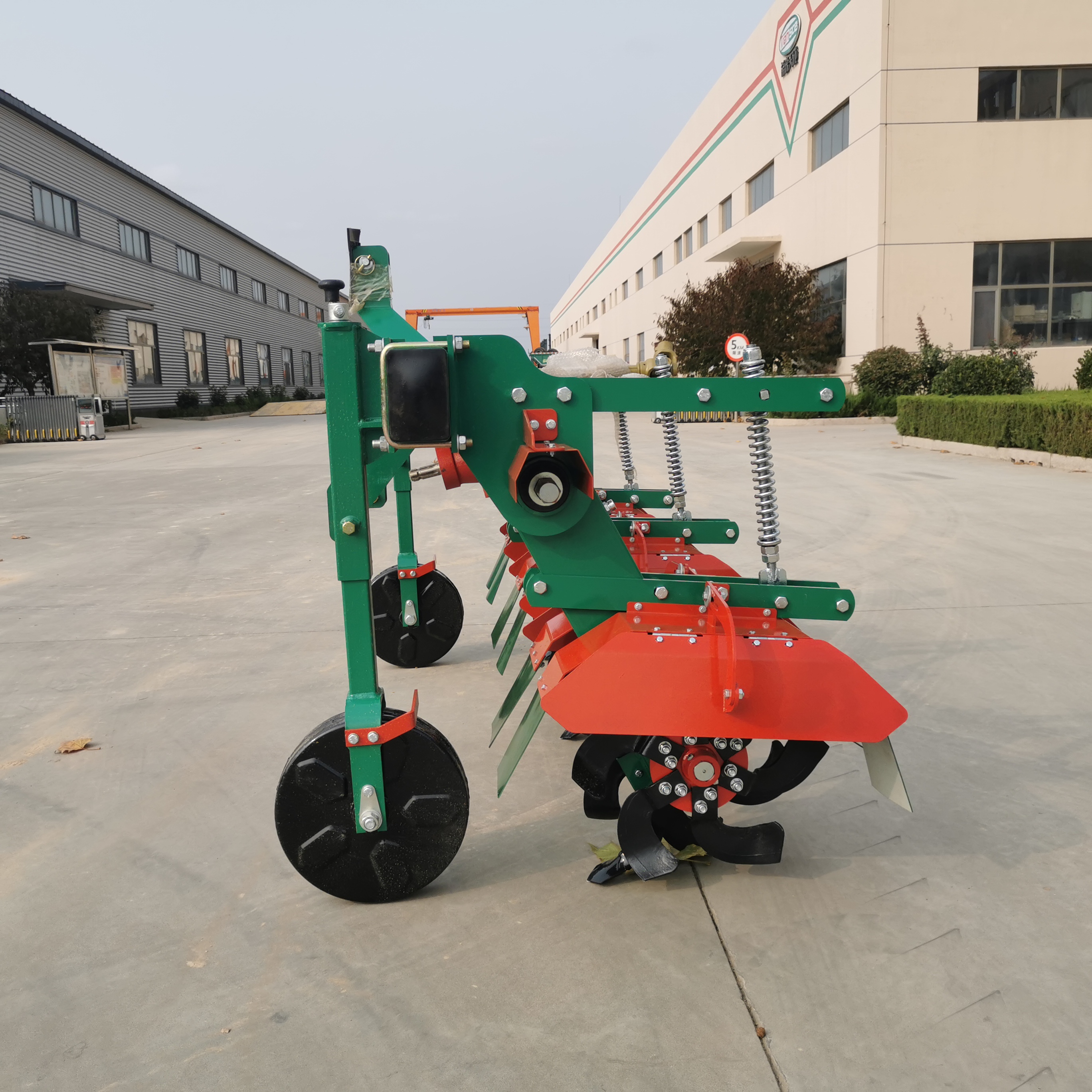

Detail appreciation：
Performance Parameter
| Item | Unit | 3ZMP-120 | 3ZMP-130 |
| Structural style | / | Mounted | Mounted |
| Overall dimenion | mm | 1130×1990×1200 | 1487×2395×1200 |
| Machine weight | kg | 378 | 573 |
| Tractor engine power | hp | 45-60 | 55-80 |
| Applicable ridge spacing | mm | 1100-1500 | 700-900 |
| Working row(ridge) number | / | 1 ridge and 2rows | 2 ridges and 2 rows |
| Soil hilling mode | / | Bilateral soil hilling | Bilateral soil hilling |

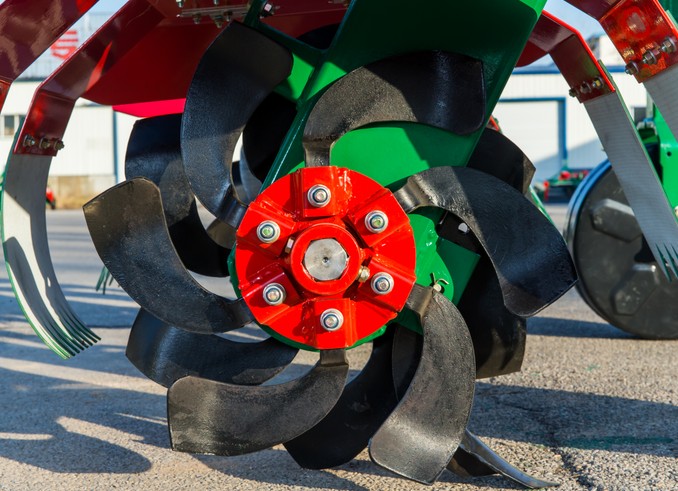

| Soil hilling parts type | / | Rotary blade type | Rotary blade type |
| Number of soil hilling parts | / | 2 | 3 |
| Working width of soil hilling parts | cm | 18 | 18 |
| Work efficiency | ha/h | ≥0.26 | ≥0.33 |
