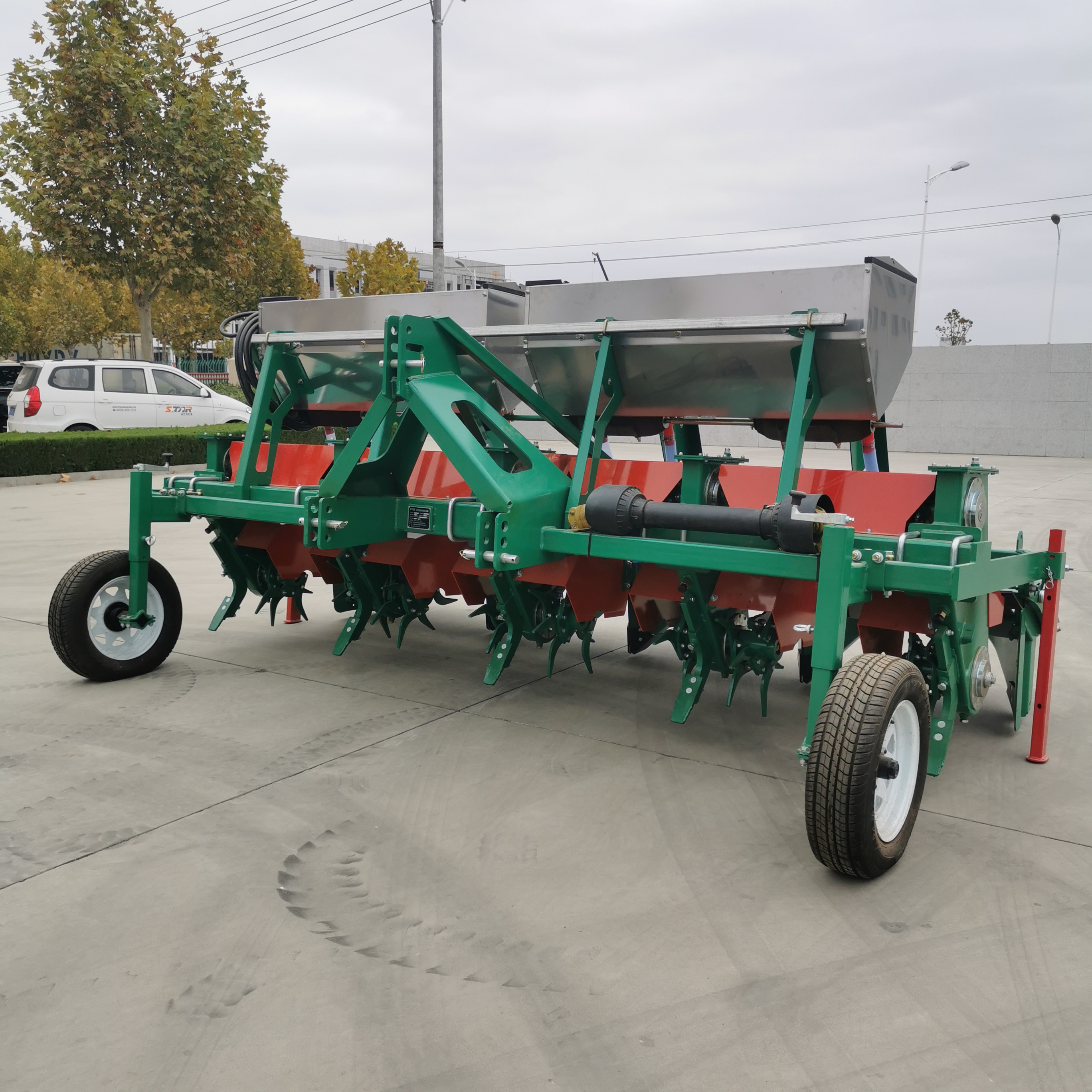

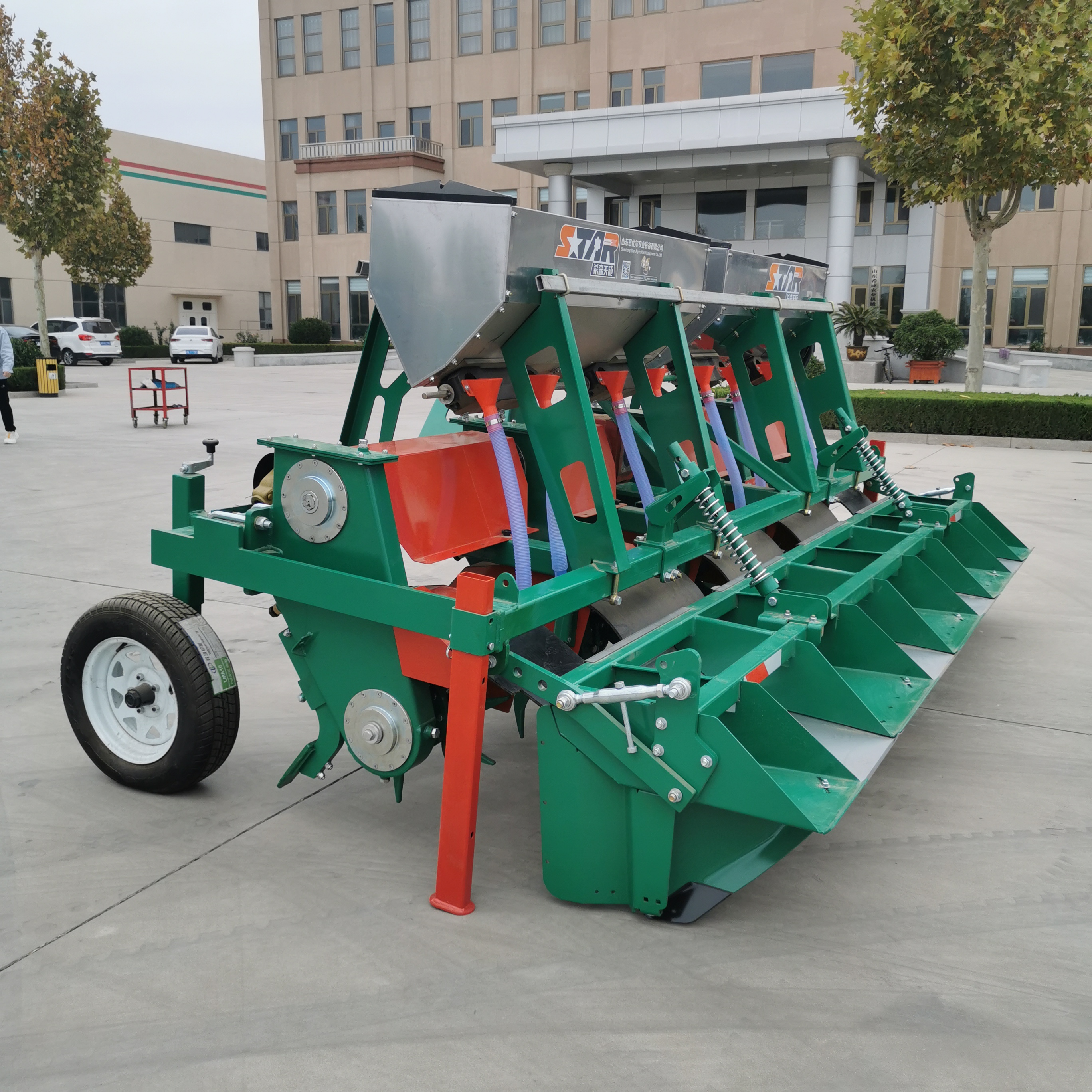

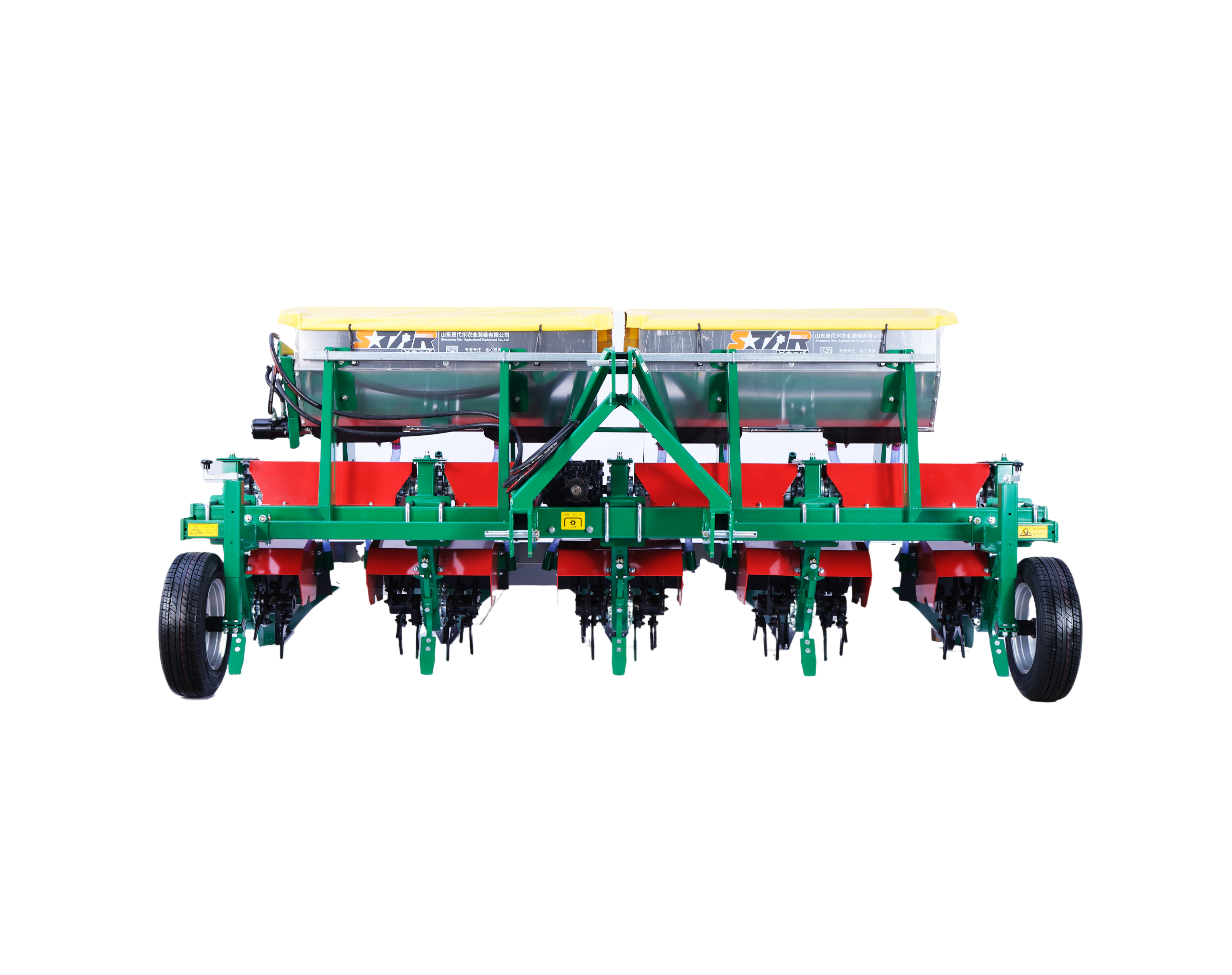

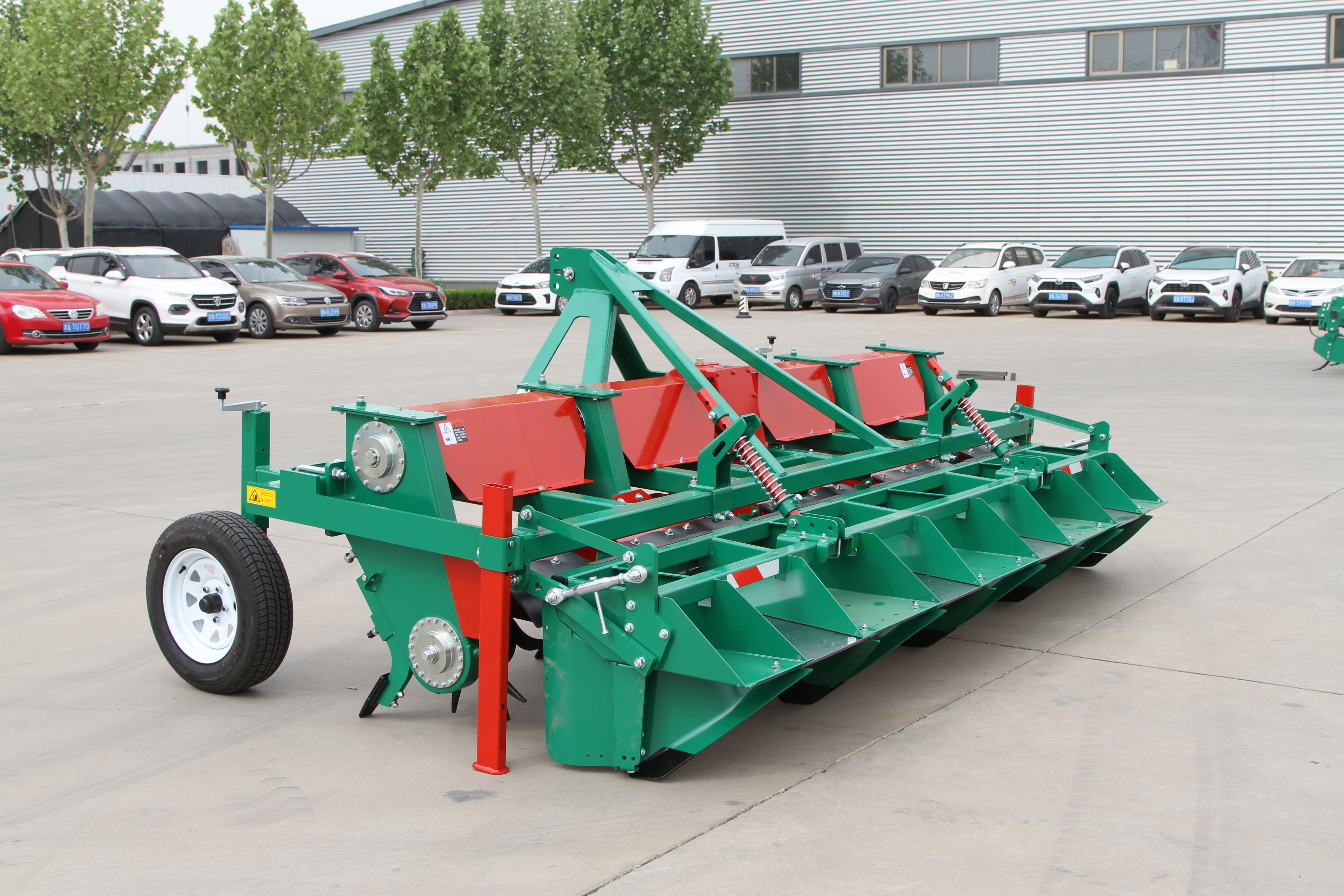

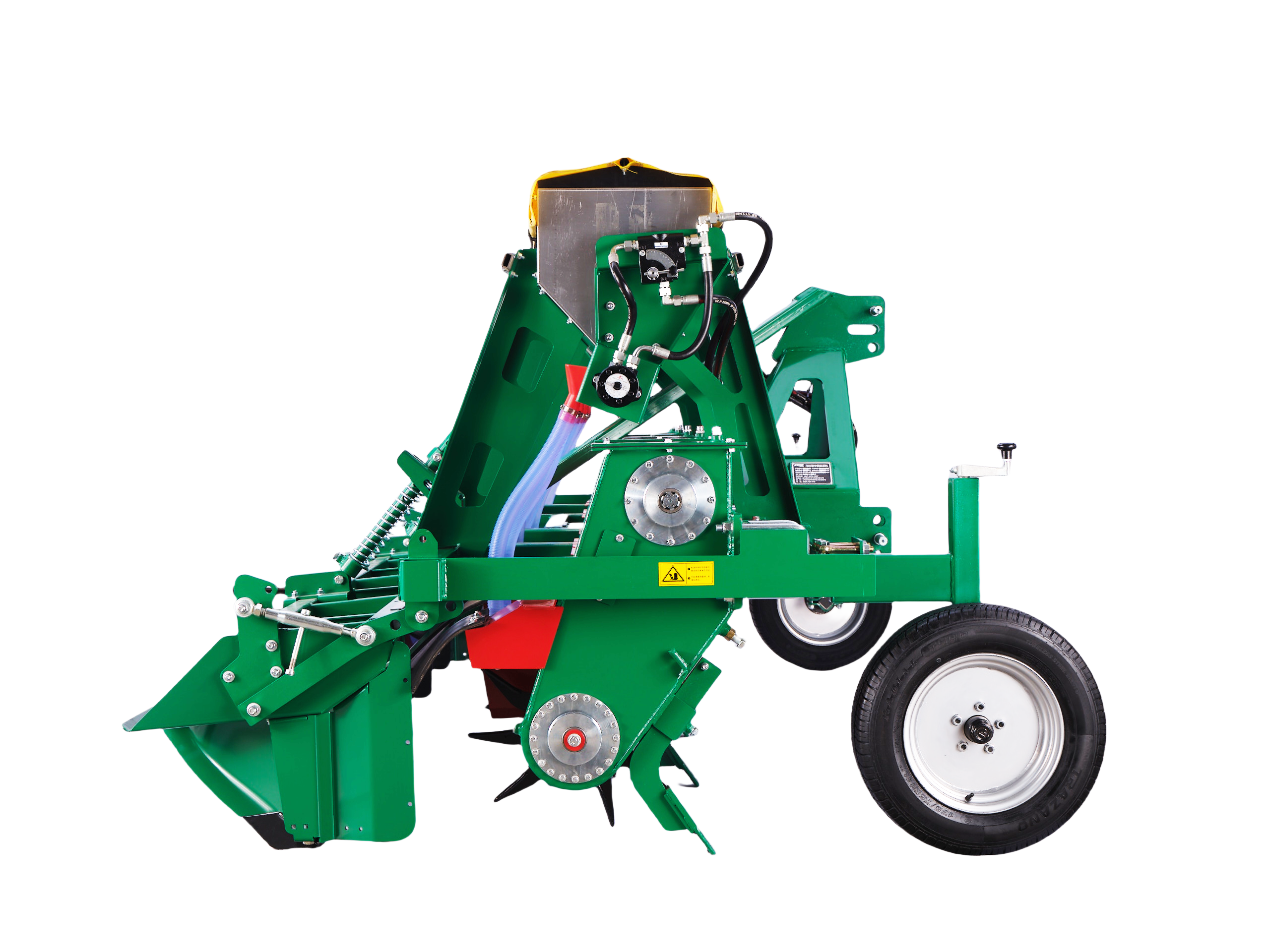

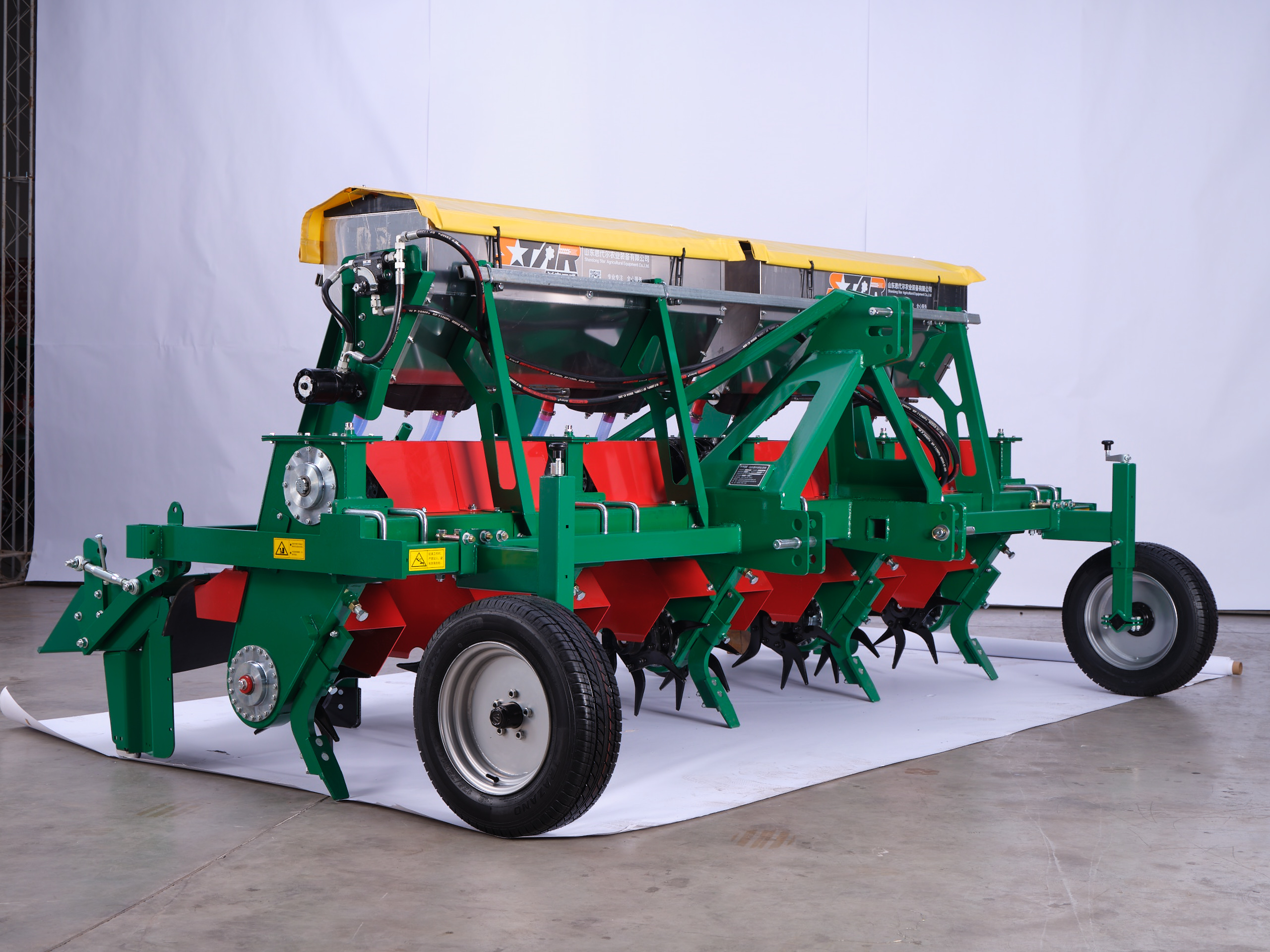

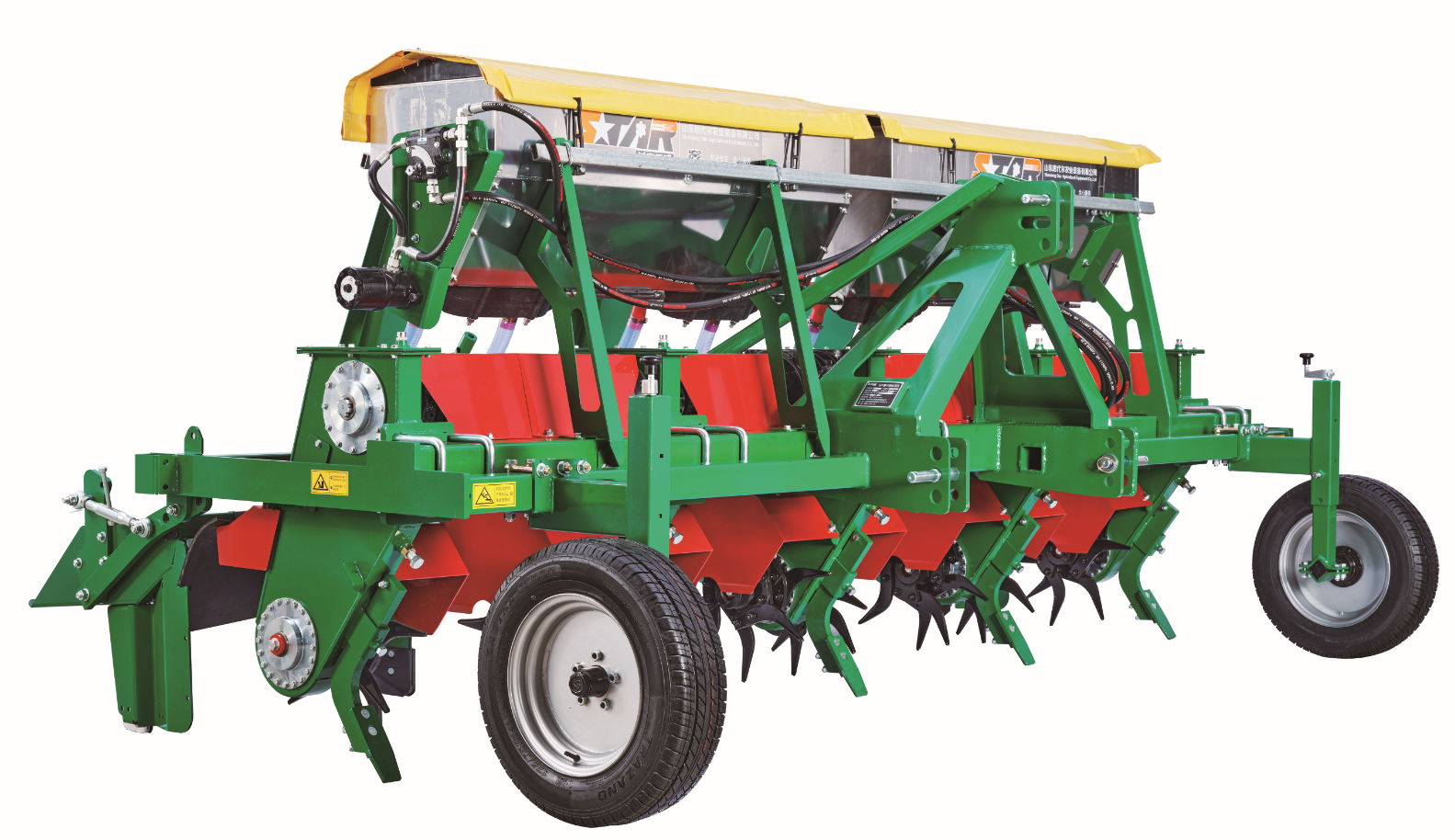

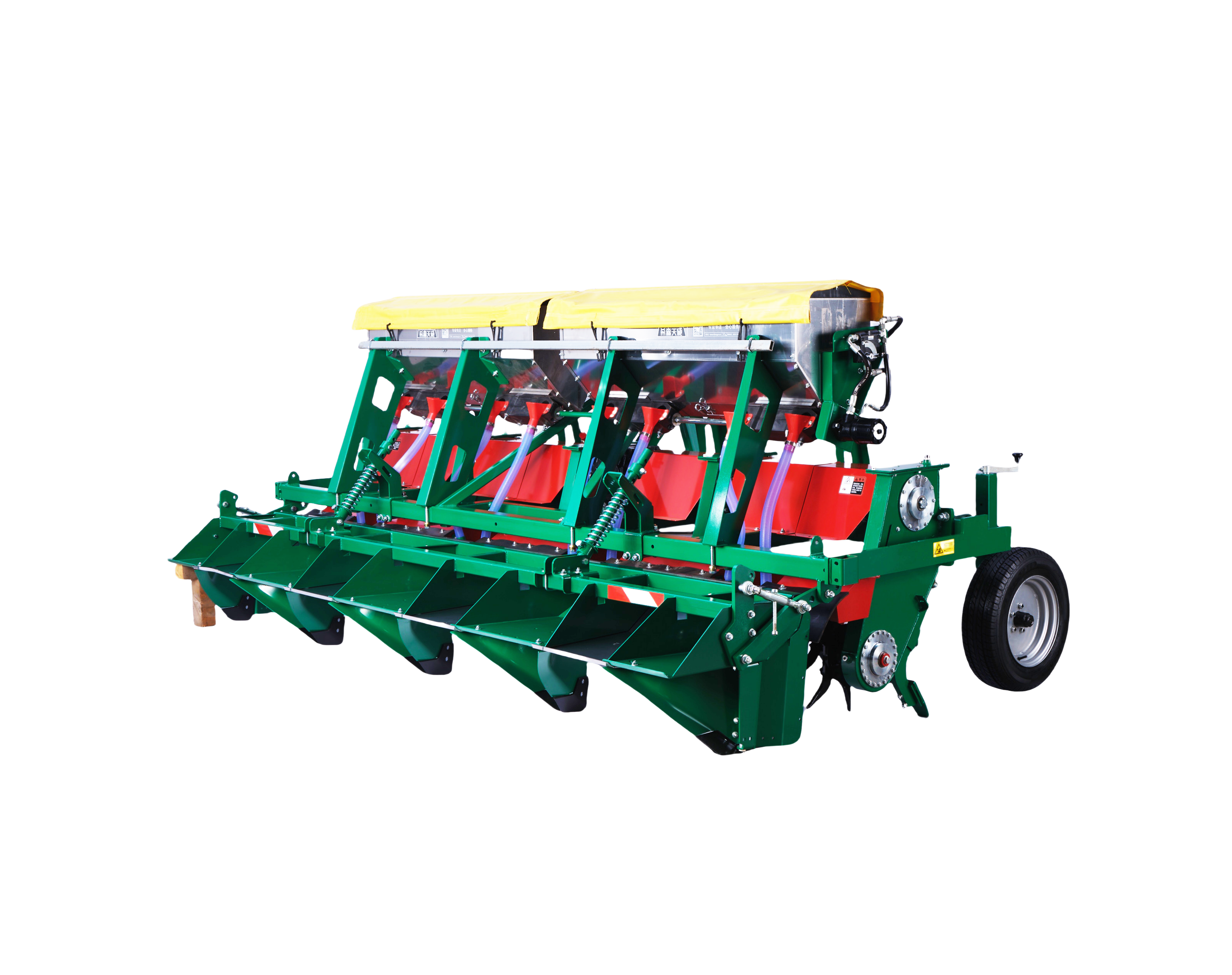

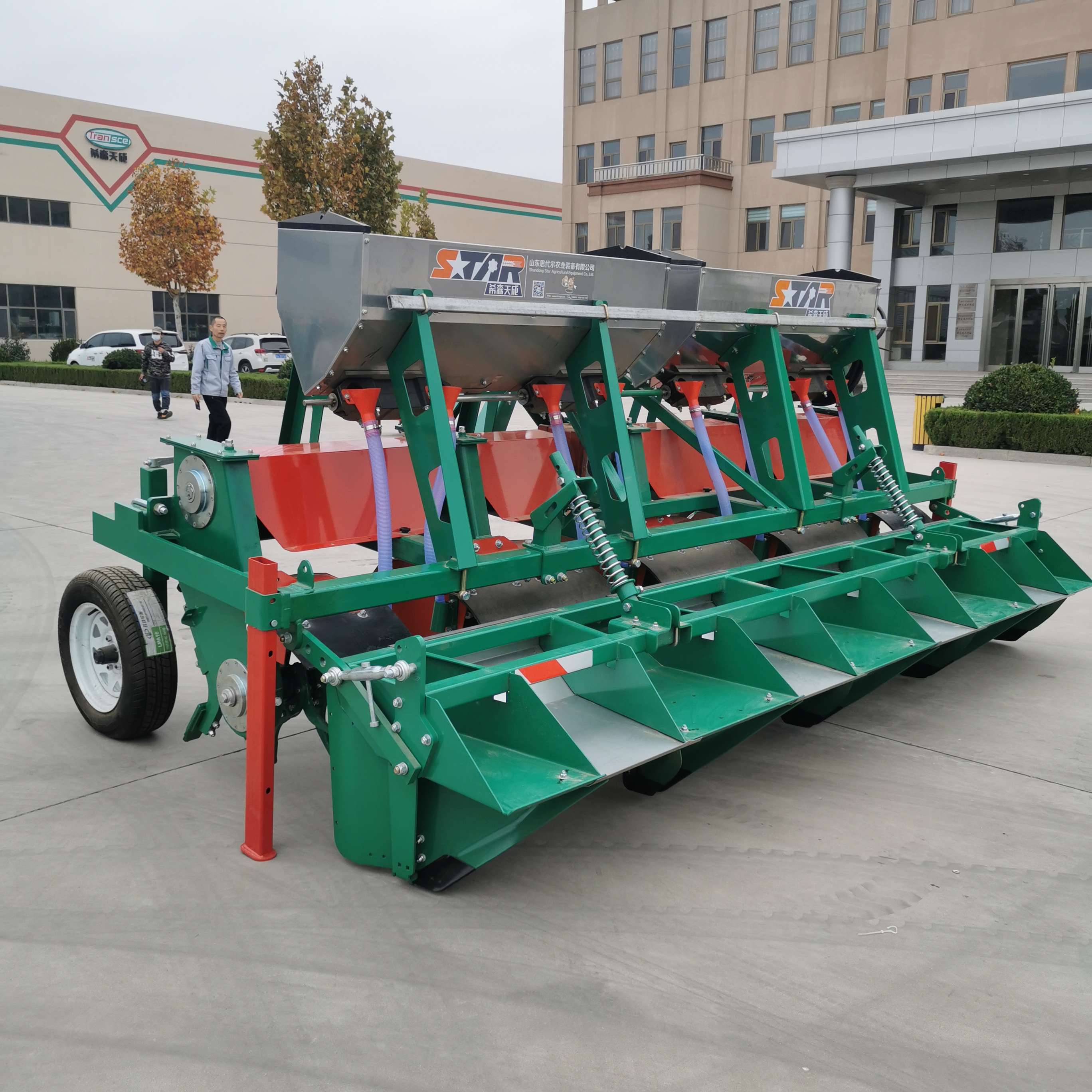

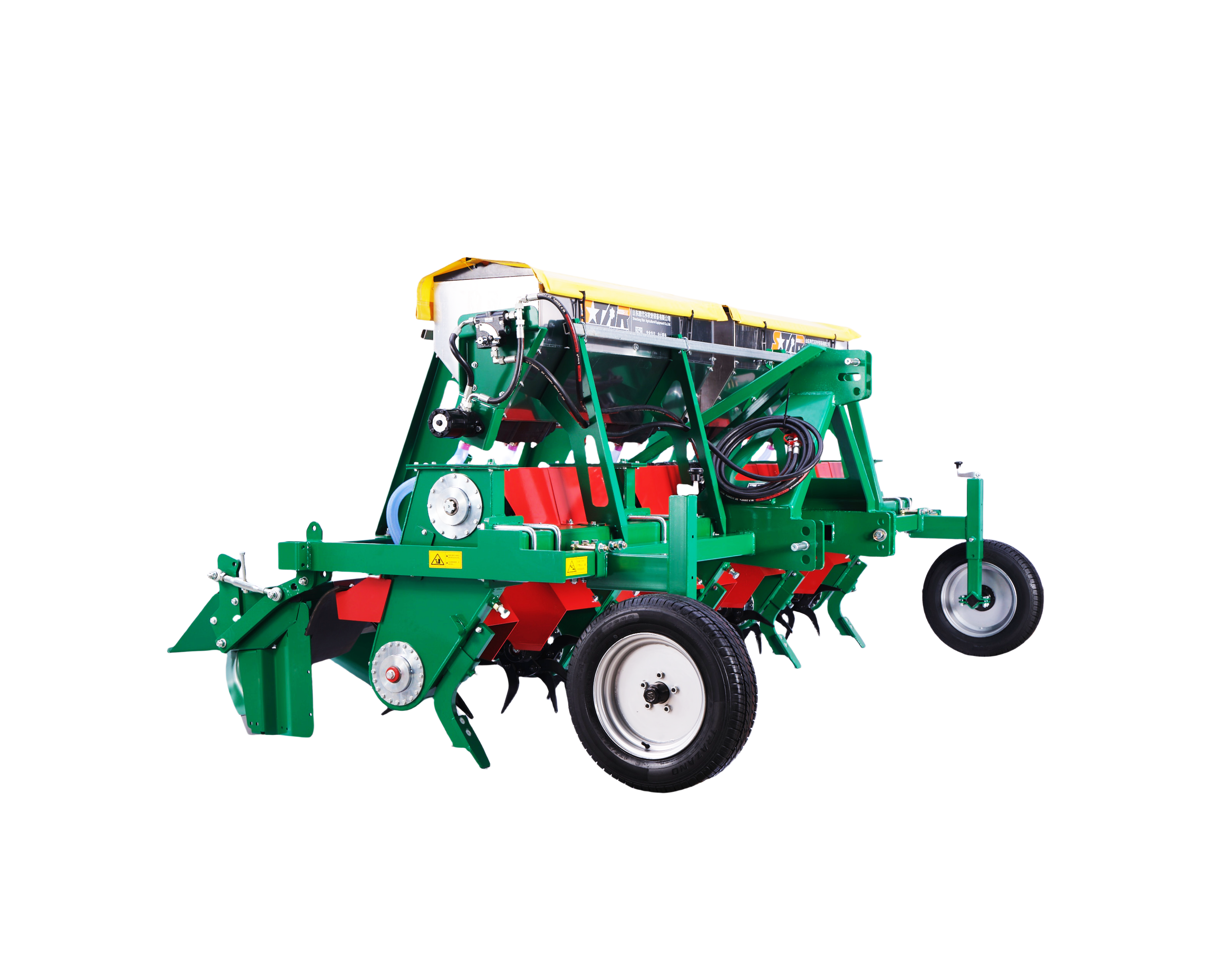

3ZMP-180 Suspended Potato Cultivated Soil Fertilizer is an agricultural machinery used in potato cultivating soil, which can complete the operation of loose soil, weeding, ridge construction and top dressing, and both to improve the temperature and soil moisture.
Structural features
1、The machine frame adopts double beam rectangular frame structure, strong strength, good rigidity, no deformation;
2、This machine uses the S-curved elastic shovel, which enhances the elasticity of the shovel so that the hard objects (such as stones) in the soil can be destroyed to the lowest of the whole machine.
3、The machine is cultivated by the soil of the soil into a trapezoid, by adjusting the soil and the ground angle can be adjusted ridge height and ridge width;
Applicable scope
The potato cultivated cultivated soil topdressing machine for 90 cm ridge distance, the ridge height between 25 to 30 cm, and the ridge around the length of about 110 cm of potato cultivation ridge ridge operations. Its operation requires soil moisture content of not more than 25%, the proposed operating speed of 4 to 6 km per hour.
| Item | Unit | 3zmp-360f |
| Structural style | / | Mounted |
| Overall dimension(length×width×height) | Mm | 2325×4010×1750 |
| Machine weight | Kg | 1900 |
| Supporting power | Hp | 140-220 |
| Working row (ridge) number | Ridge | 4 |
| Cutter shaft form | / | Halfshaft |
| Input speed | R/min | 1000 |
| Number of blades | Pc | 8+16+16+16+8 |
| Work efficiency | Ha/h | ≤ 1 |
| Fertilizer bunker volume | L | 470（ optional） |
| Work efficiency | Ha/h | ≥0.33 |
