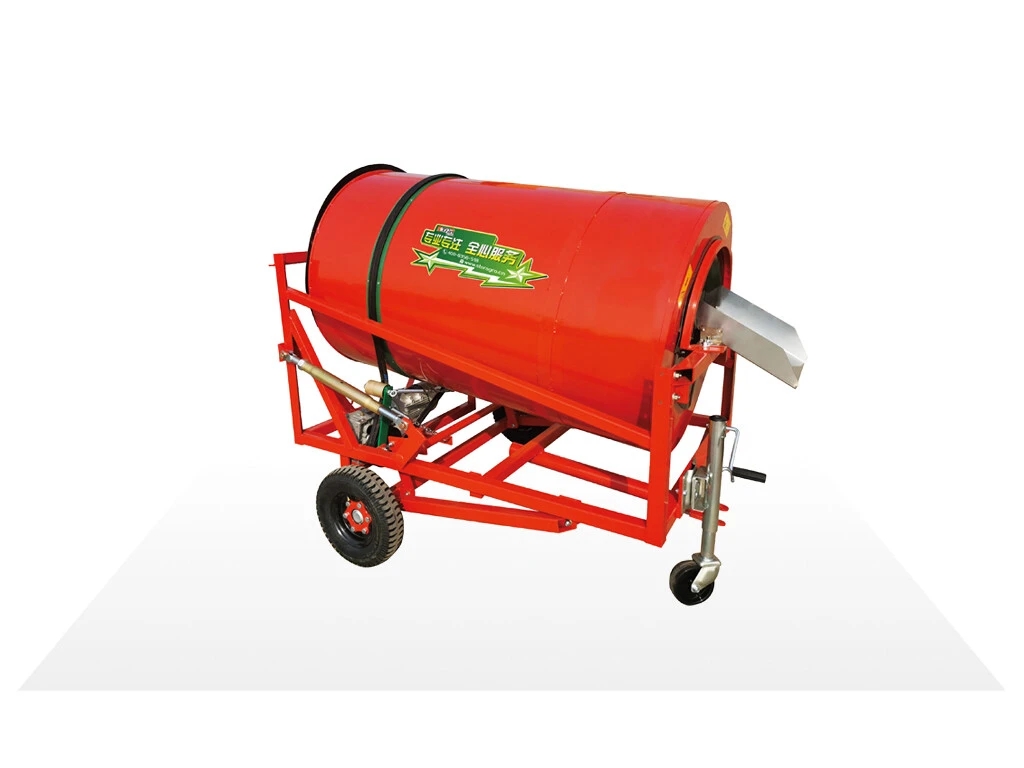

Potato Seed Mixer 5ZB-5B
This is an agricultural machine specifically designed for the mechanized treatment of seed potatoes before planting.
Its core function is to evenly coat the surface of the cut potato seed tubers with a seed coating agent (fungicide, insecticide, nutrient, etc.), forming a protective film.

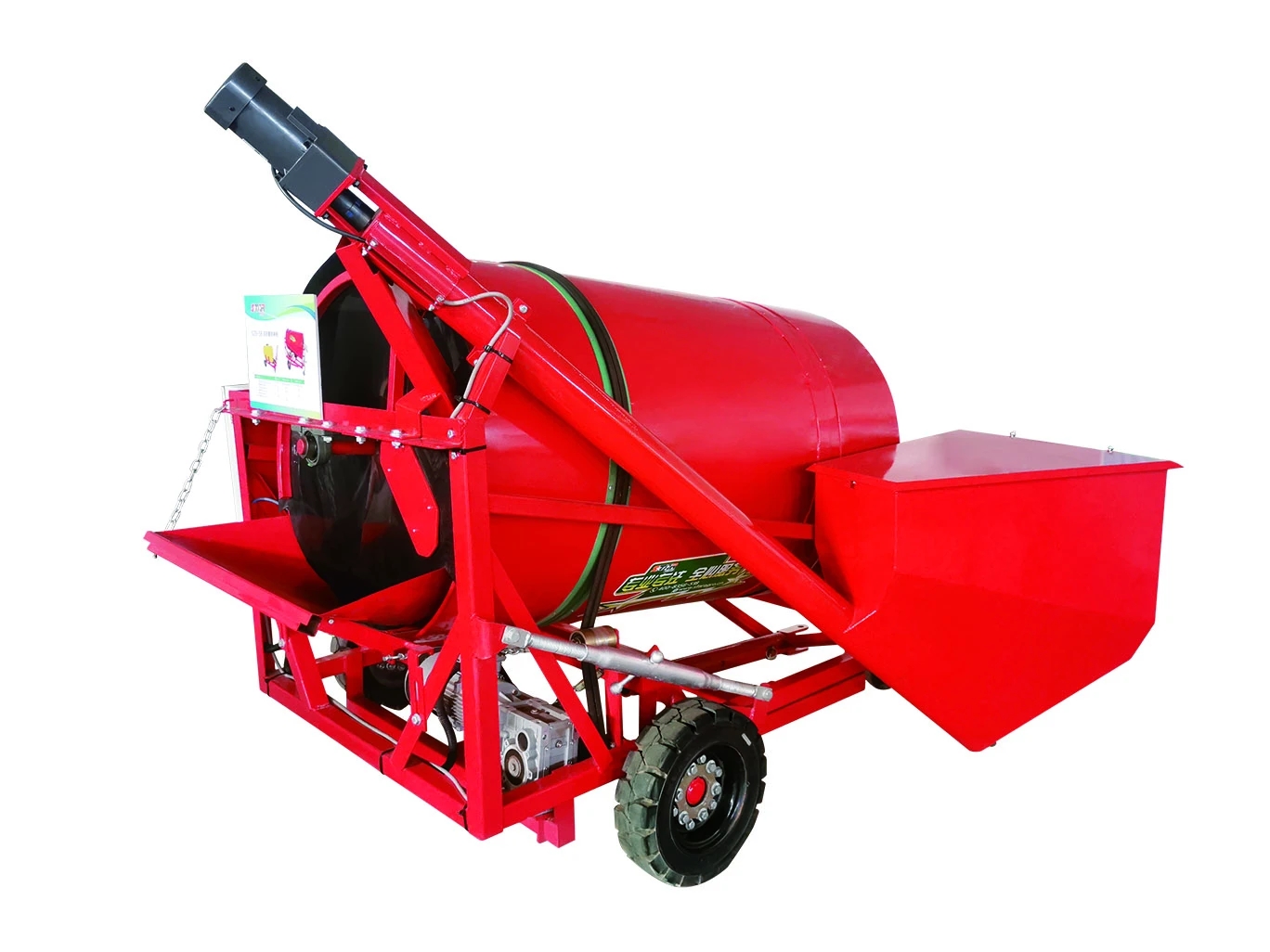

It consists of a drum, frame, dry powder box (for wet mixing, a mixing trolley), variable speed DC auger drive, dust curtain,
stainless steel hopper, and stainless steel discharge chute.
Machine Structure:
1. Drum: Used for mixing potato seeds.
2. Frame: Used to fix the mixing tank and dry powder box, and for connecting the implements to the tractor's suspension mechanism.
3. Dry Powder Box: Used to hold talcum powder or other dry powder.
4. Variable Speed DC Auger Drive: Used to lift the dry powder.
5. Stainless Steel Hopper: Used to change the feeding angle of the potato seeds.
Item | Unit | Mix power mixer | Pesticide mixer |
Overall dimension (length×width×height) | mm | 2300×1955×1700 | 2300×1472×1375 1613×880×1105 （ Pesticide） |
Machine weight | kg | 440 | 360+120 （ Pesticide） |
Working efficiency | kg/h | 4500 | 4500 |

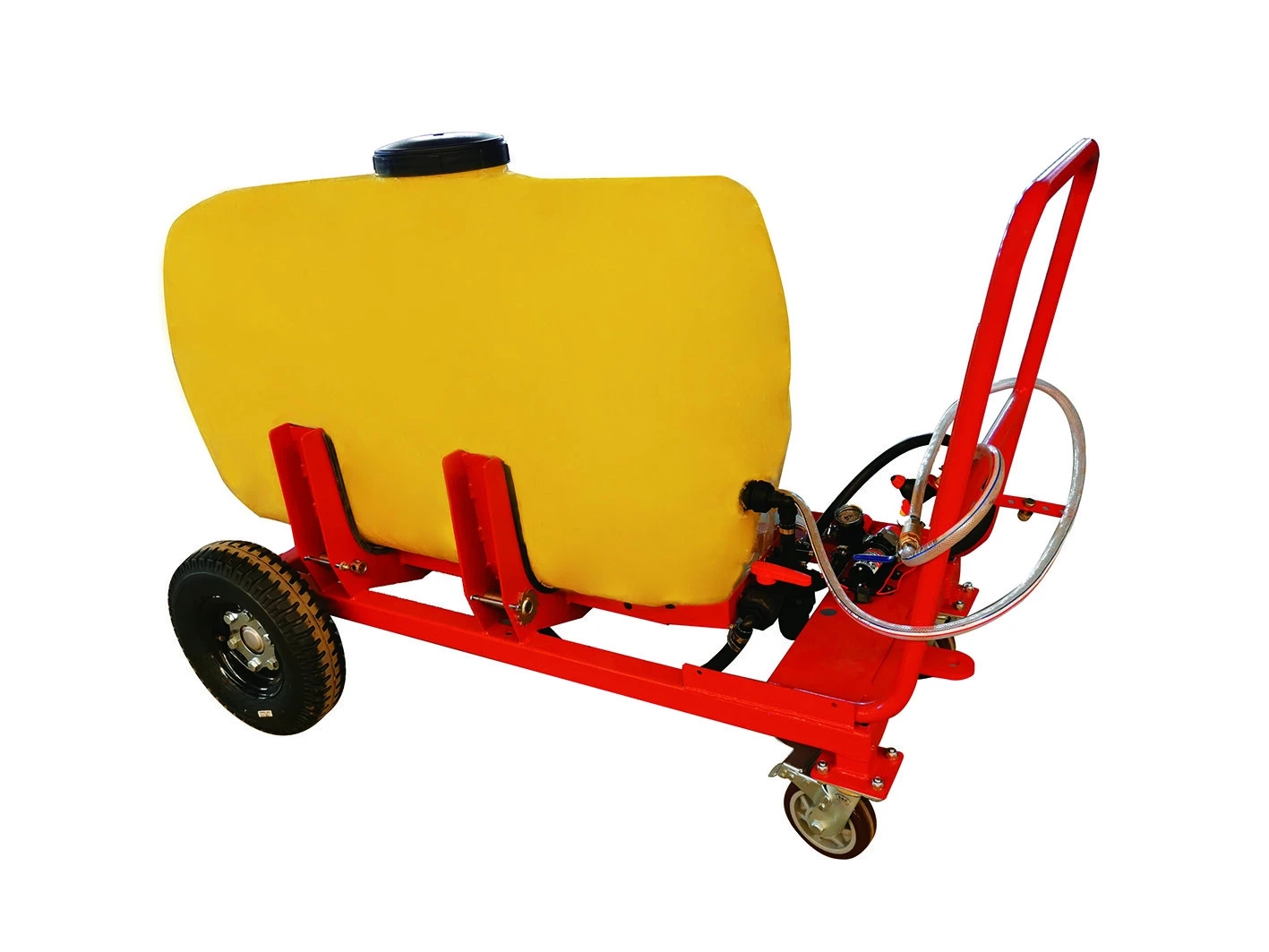

Volume of pesticide tank | l | / | 350 |
Power | kw | 1.7 | 1.5 |
Cylinder volume | l | 1000 | 1000 |
