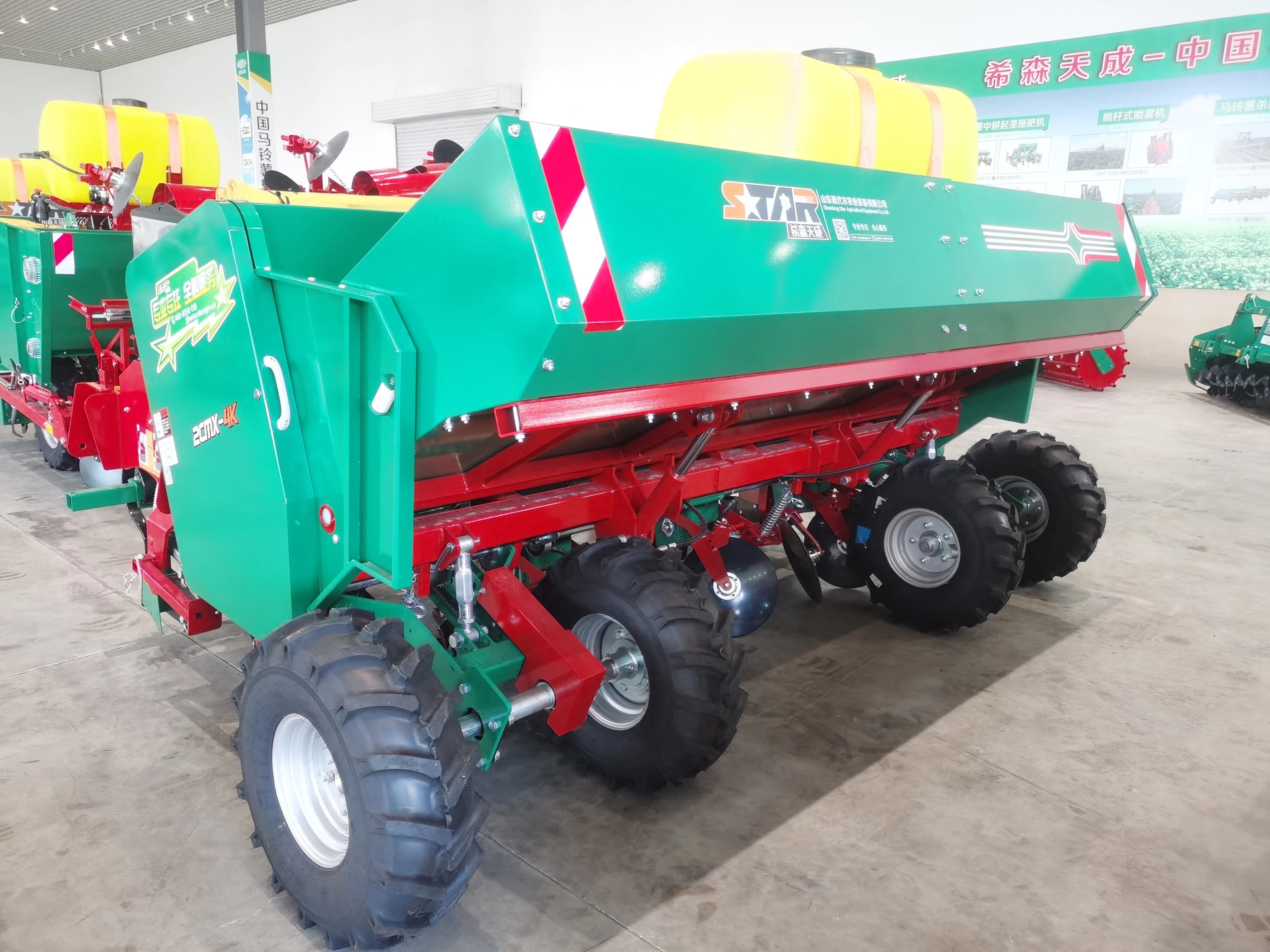

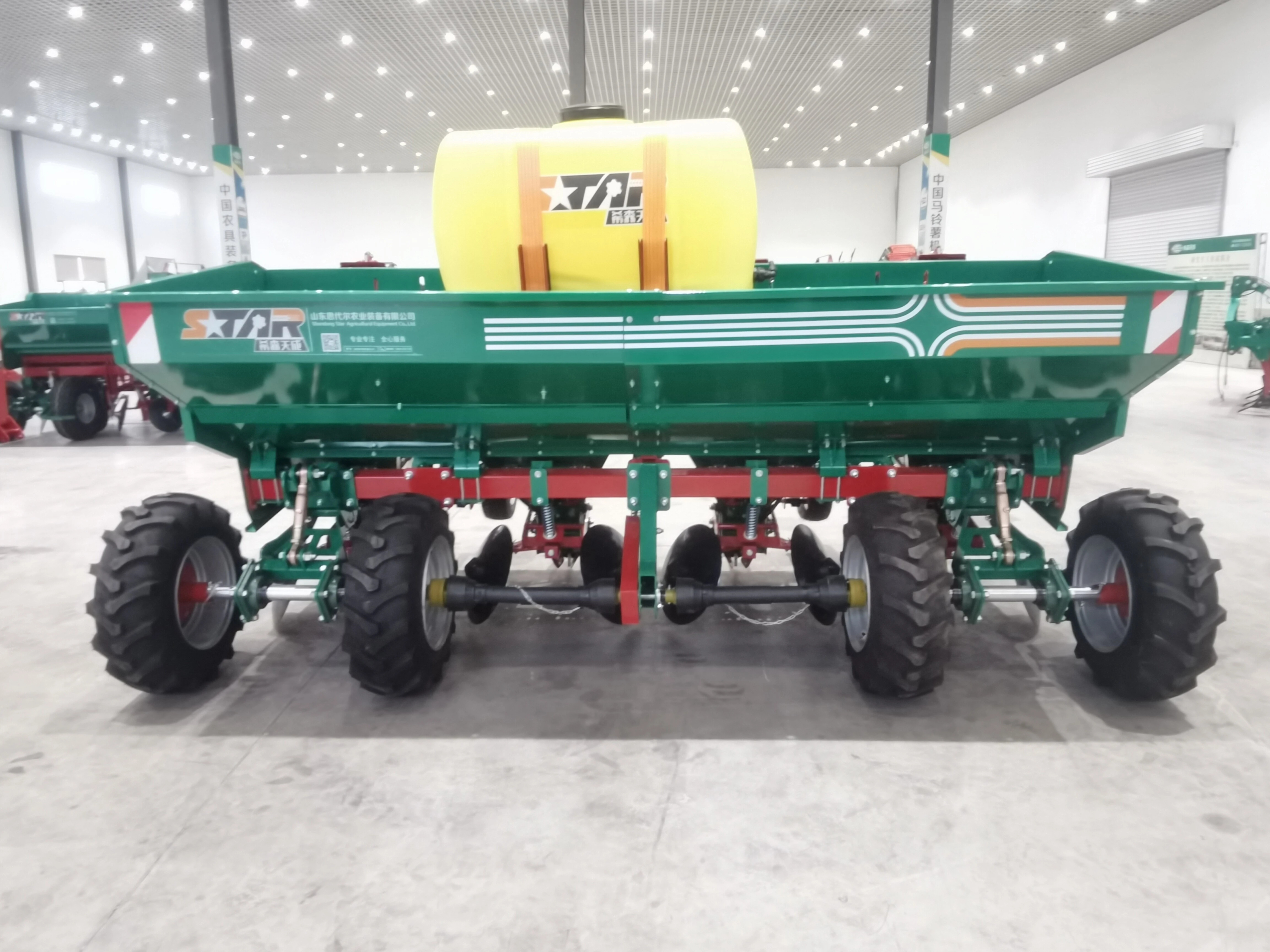

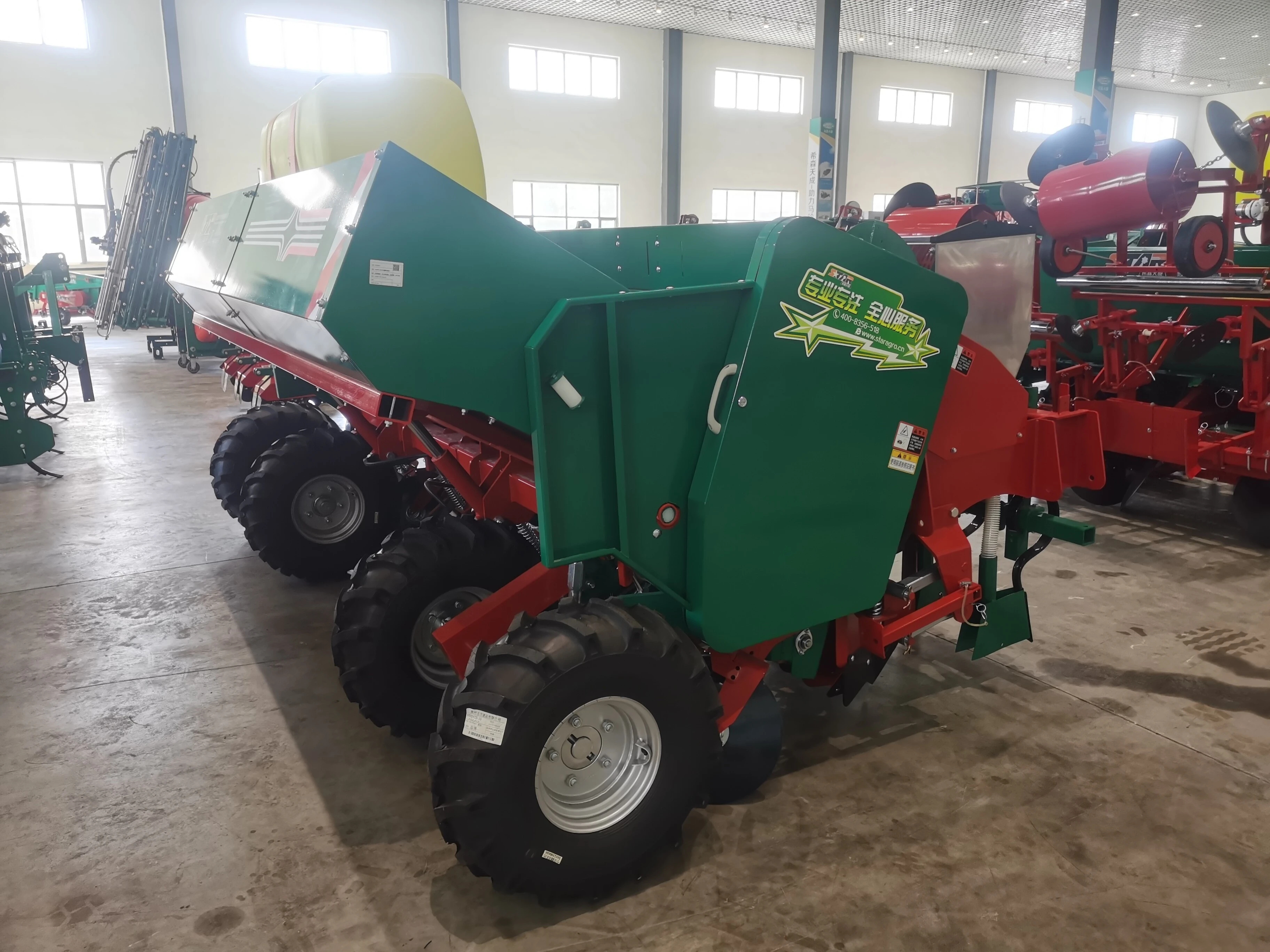

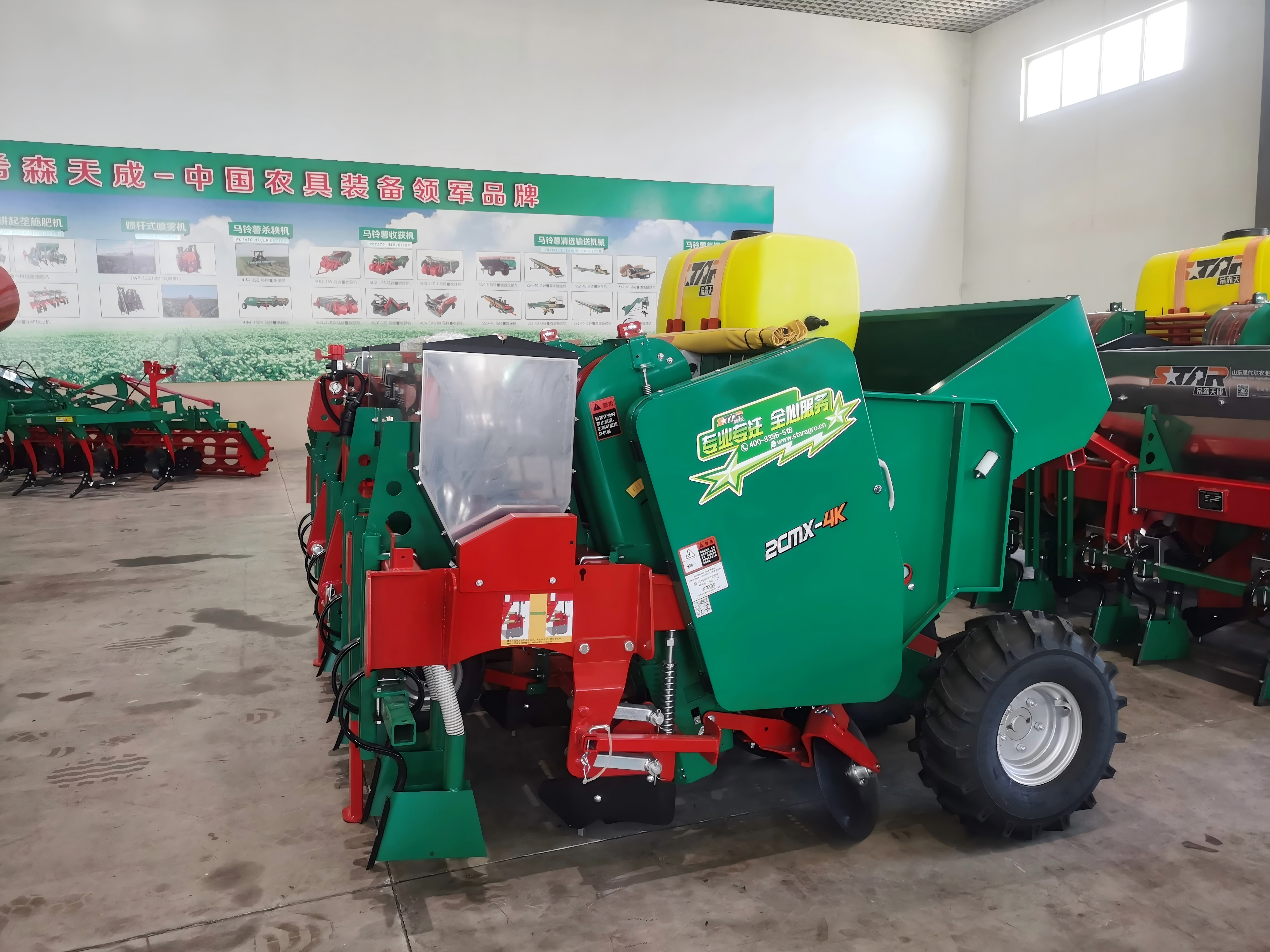

Product Introduction
This machine mainly consists of ground wheels, a frame, a furrow opener, a seeding unit, a seed box, and a ridging device.
The entire machine is mounted on the rear of a tractor.
During operation, the tractor supports the machine as it moves forward. The ground wheels on the machine, via a transmission sprocket, distribute the seeds,
while the ridging device simultaneously creates ridges, controlling the planting depth and ridge shape.
In addition, this model can be equipped with optional fertilizer and pesticide application devices.
Performance Parameter
| Item | Unit | Parameter Index |
| Structural style | / | Mounted |
| Overall dimension | mm | 2571×3864×1615 |
| Machine weight | kg | 2258 |
| Tractor engine power | hp | ≥ 180 |
| Applicable row spacing | mm | 900 |
| Working row(ridge) number | / | 4 ridges and 4 rows |
| Seed case volume | L | 2200 |
| Fertilizer case volume | L | 700(Optional) |
| Rated capality of medicine chest | L | 350(Optional) |
